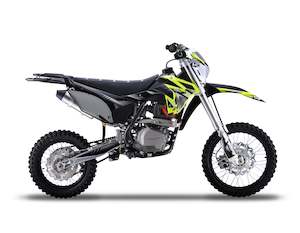

Thumpstar - TSF 150cc X3 Dirt Bike

We listened to our customers asking for the return of a classic, our very popular 150cc model, bringing all the features down from the TSX230 into a smaller easier to handle, more convenient package. Great for smaller people who like the lower seat height or those that want a mid-sized bike to throw around on the trails. Frame Updated Frame

In the frame department we have simply taken what works from our proven TSX230 and added a few tweaks here and there for the new X3 format, a sturdy well balanced frame makes handling the trails a treat and keeping that nimble feeling that you get on a little bike. Wheels Lightweight Alloy

Using what we learned in development of our AK7 wheel design, our trail bikes too now have stronger wheels with a 7000 series alloy rim, cast aluminium hubs, large bearings, and stainless spokes for reliability. Suspension VS1 Front Forks

The continuous development of our VS1 suspension system has now allowed us to add VS1 to our latest range of Trail class bikes. Updated triple clamps & new valving allow the front end to handle on all the trails. Comfortable and smooth while not forgetting to let you feel the trail and maintain stability on the more technical tracks. Exhaust Performance

A redesigned frame came with requirements for a new exhaust header. The new head pipe from Thumpstar allows exhaust gasses to expand, cool, and ramp back up at a higher velocity when exiting. This results in a greater bottom, and low-end response while keeping the tuning in check for the top end. Linkage Swingarm and Linkage developments

Updated X3 linkage geometry helps keep your rear shock in check for smooth rides over rough terrain and putting the power to the trail when needed. Ride the trails for longer, in more comfort with progressive rear shock performance. Engine TY Electric start

Our famous TY engine in 2 sizes TSF150 and TSF230 maintains the strength and reliability found within our 1st full size bike (TSX230) now in a trail specific format. Airbox Updated Flow

Continuing the update trend but also sticking to what works, here you will find the dual layer caged air filter and stainless mesh filter in the tried and tested airbox design that doesn’t restrict airflow. Whether you are on a dusty trail or get caught in the rain the X3 Airbox will help keep you going. Waterproof Electronics Waterproof Connectors

All of our new bikes come equipped with redesigned looms and electronics. We have done away with single flimsy wires and connectors, and replaced them with heavy duty multi core wiring, and sturdy connectors. Accompanied by water proof plugs and electronics such as the Revking CDI, Rectifier, and Coil, this is a far superior package to any of the competition. Rear Axle Lockheed Design

The X3 models also receive the Lockheed rear axle design but in a larger 25mm diameter. Keeping chain adjustment easy with only 1 nut to loosen, A lighter design than a solid axle but also stronger. Footpegs Durable

We used high-quality stainless steel material for strength and to look fresh for years to come, finished off with perfectly fitting springs. Colours Free Spare Parts Kit Product Packaging Specifications ENGINE & TRANSMISSION Engine TY - 4 Stroke CC Rating 150cc Gearbox Manual - 5 speed (1N2345) Starter Electric Start Carburetion PE 28mm Exhaust Pipe Bomb Exhaust System Final Drive 520 Chain Top Speed 120kph/75mph (depending on gearing) SUSPENSION, BRAKES, & WHEELS Suspension Front VS1 Inverted Forks - Length 850mm - 53/58.5 Suspension Rear Mono shock - 450mm Brakes Front 260mm Disc - Dual Piston Brakes Rear 240mm Disc - Single Piston Wheel & Tire Front Alloy 7075 Rim - 80/100 - 17" Wheel & Tire Rear Alloy 7075 Rim - 100/90 - 14" DIMENSIONS & WEIGHT Wheelbase (axle to axle) 1330mm - 52" Seat Height 850mm - 33.5" Product Weight N.W - G.W 103/122kg - 227/268lbs Tank Capacity 6.3 Litres - 1.6 gallon Product Packing Size 1480x455x830 -.65m3
