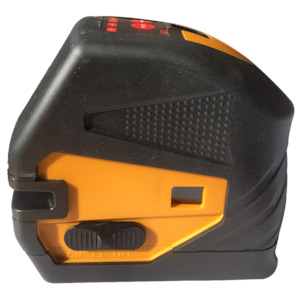

Bell Precision 5DXR 5 Dot 2 Line Laser Kit
A unique self levelling laser that combines 5 perpendicular dots with a cross line that all work simultaneously or independently. Pulse function which mimics a rotating laser and allows the included receiver to pick up the lines at up to 40m outside or when light conditions are too bright to see the beam.
Features: Working range of 30m (dots) / 10m (lines). Cross range extended with included receiver, 1 x cross laser, 5 x dots all at 90° to eachother, 3 x Horizontal dots with 1 x up and 1 x down to set plumb, Out-of-level indication, Low battery indication, Swivel base with strong magnets and provision for wall fixing, 1/4" & 5/8" mounting threads, Pendulum mechanism latch for safe transportation.
Specification: Laser cross accuracy ±3mm @ 10m, Laser dot accuracy up point ±3mm @ 10m Down point ±6mm @ 10m, Laser dot accuracy left, right and forward points ±4mm/10m, Self levelling range ±4°, Working range Dots 30m Line 10m, Laser class ll, Wave length 630-685nm, Power supply 6V.dc (4 x AA batteries) Operating time approx. 10hrs continuous, IP54 rating, Tripod threads 1/4" to instrument both 1/4" & 5/8" in base, Operating temperature range -10°C to 40°C, Dimensions 102 x 70 x 121mm.
Kit includes: Unit, Receiver, Lightweight aluminium tripod, Multipurpose base with magnets, Ferrules for attaching to wood, Laser Target, Strap, Glasses, Hard Carry Case.
