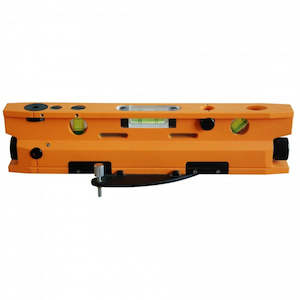

Bell Precision Torpedo Level Laser 3 Dot (TL240M3D)

A torpedo level with three perpendicular beams, and four vials at 45°, 90° and 180° (2 vials). This level has a solid billet body, v groove magnetic base for attaching to pipe or flat steel, and a levelling plate for use on flat surfaces. It also has a camera thread for use on a tripod. The beams are fixed so you can transpose points on any angle, and offsets are standard measurements (1" or 25.4mm and ¾" or 19mm) and marked on the level body. Set up pipework, install brackets and transpose points easily.

​
Features

3 laser dots at 90° to each other

4 bubble vials at respective orientation of 0°, 45°, 90°, 180°

The magnetic base could attach on the metal or pipe firmly

The V-shape slot bottom with hole could bind on the pipe

Special bracket for leveling bubble



Specifications

Laser wavelength: 635nm

Laser class: Class II/III

Horizontal accuracy: ±3mm/10m

Power:3 AA battery

Size: 242×25.4×56mm

Weight: 0.75kg







Basic kit:



519012 main unit, belt, 3 AA battery, soft bag
