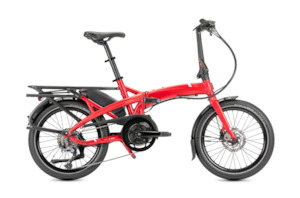

Tern Vektron Q9 Bosch Active Plus 400w/h E-Bike

- German-engineered Bosch Active Line electric drivetrain—the industry leader in electric bike technology
- Hydraulic disc brakes for all-weather stopping power
- New frame design, with a reclining battery for a lower center of gravity and better ride
- Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10" – 6’5") so a single bike can be shared by the family SPECIFICATIONS GENERAL INFO SPEEDS: 1 x 9 WEIGHT: 21.9 kg (48.3 lb) GEAR INCHES: 33" - 97" (2.65 - 7.72 m) FOLDING SIZE: 410 × 860 × 680 mm (16.1 × 33.9 × 26.8 in) FOLDING TIME: 10 sec FRAME SIZES: One size DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in) DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in) SUGGESTED RIDER HEIGHT: 147 - 195 cm (57.9 - 76.8 in) MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb) MAX RIDER WEIGHT: 105 kg (231.5 lb) FRAME FRAME: Tern Vektron, hydroformed 7005-AL, OCL joint, 3 patented technologies, Vektron G2 Frame FORK: Tern Tarsus, 6061-Al, hydroformed COCKPIT HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies STEM: Tern Andros, adjustable, forged construction, patented technology HEADSET: Tern Flux, cartridge bearings, Physis integrated HANDLEBAR: Flat bar, 6061-AL, Tern Andros adapted GRIPS/BAR TAPE: Velo ergonomic, lock-on SADDLE: Tern Porter, patented GripPad design SEATPOST: Tern Telescope, 34.9 mm, Lite 2014-AL SEATPOST CLAMP: Oversize, 6061-AL, 2pc BRAKES FRONT BRAKE: Shimano, hydraulic disc REAR BRAKE: Shimano, hydraulic disc BRAKE LEVERS: Shimano, hydraulic disc BRAKE CABLE & HOUSING: Shimano, hydraulic disc WHEELS FRONT HUB: Shimano disc REAR HUB: Shimano disc SPOKES AND NIPPLES: Stainless RIMS: Kinetix Comp, for disc TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex TRANSMISSION SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger REAR DERAILLEUR: Shimano Alivio Shadow CRANKSET: Vektron custom, forged 6061-AL crankarm CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd BOTTOM BRACKET: Motor integrated CHAIN: 9 spd, DHT for eBike, GST corrosion resistant coating PEDALS: MKS EZY SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules E-SYSTEM MOTOR: Bosch Active Line, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 40 Nm BATTERY: Bosch PowerPack 400 Wh DISPLAY: Bosch Purion, 4 mode selectable, walk assist RANGE: 400 Wh: 50-130 km (30-80 mi) CHARGER: Bosch Compact Charger/ Bosch Standard Charger BELLS & WHISTLES BELL: Aluminum CHAINGUARD: SKS Chainblade KICKSTAND: URSUS MOOI, rear mount CLIP SYSTEM: Magnetix 2.0 LUGGAGE SOCKET: Yes FRONT LIGHT: Tern Valo Direct, integrated, 41 lux/150 lumens REAR LIGHT: Herrmans H-Trace, for eBike FENDERS: SplashGuard, stainless hardware RACK(S): Atlas Rack, integrated 8 point mounting, max load capacity 27 kg (59 lb)

Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
