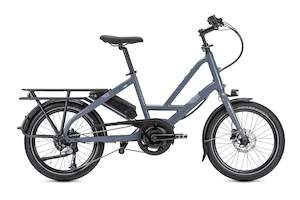

Tern Quick Haul D8 Bosch Active Line
- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
- 1x8-speed Shimano Altus groupset with trigger shifter Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 150 - 195 cm (4’11" - 6’5") tall, with adjustable seatpost and Speedlifter stem (no tools required)
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight SPECIFICATIONS GENERAL INFO SPEEDS: 1 x 8 WEIGHT: 22.8 kg (50.3 lb) GEAR INCHES: 31" - 95" (2.45 - 7.57 m) FRAME SIZES: One size DISTANCE: SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in) DISTANCE: SADDLE TO PEDAL: 68 - 110 cm (26.8 - 43.3 in) SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in) MAX GROSS VEHICLE WEIGHT: 150 kg (330.7 lb) MAX RIDER WEIGHT: 120 kg (264.6 lb) FRAME FRAME: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg FORK: Cargo, steel, EFBE approved: 150 kg COCKPIT STEM: Speedlifter, 150 mm extension, 3D Forged stem, 31.8 HEADSET: TH, cartridge bearings HANDLEBAR: Low riser, 31.8, 6061-AL GRIPS/BAR TAPE: Velo ergonomic, lock-on SADDLE: Velo Comfort SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp SEATPOST CLAMP: Tern Collar BRAKES FRONT BRAKE: Shimano, hydraulic disc REAR BRAKE: Shimano, hydraulic disc BRAKE LEVERS: Shimano, hydraulic disc BRAKE CABLE & HOUSING: Shimano, hydraulic disc WHEELS FRONT HUB: Shimano disc REAR HUB: Shimano disc SPOKES AND NIPPLES: Stainless steel RIMS: Kinetix Comp, for disc TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
