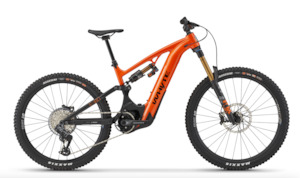

Whyte E-180 RSX Enduro/Gravity E- Mountain Bike

Our premium self-shuttle gravity e-MTB is ready for sending the biggest lines, jumps, drops and features with total confidence.

If having the best time doing the biggest lines in the biggest terrain is why you ride, the E-180 RSX is ready. E-BIKE SPECIFIC

DRIVE UNIT The 85Nm Performance Line CX drive unit (600W peak power), the smart system

BATTERY Bosch’s largest capacity 750Wh battery

DISPLAY Bosch LED remote SPECIFICATIONS

- FRAME
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
- FORK
Fox Float 38, Factory 29in, 180mm travel, 44mm offset with Grip 2 damper
- and custom tune, tapered steerer, Kashima coating, 110mm x 15mm Boost, E-Thru axle
- SHOCK
Fox Float X2, Factory, independently adjustable compression and rebound damping, Kashima coating
- RIMS
DT Swiss Hybrid HX1700
- HUB
Rear: DT Swiss Hybrid HX1700, 30mm wide rim, 12 x 148mm Boost, SRAM XD
- Stee
- Front: DT Swis Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost
- SPOKES
DT Swiss
- HEADSET
FSA No. 55/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings
- TYRES
Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Assigai WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, rear
- CRANK SET
Race Face Affect e-bike, 165mm, ISIS with X-SYNC direct mount 36t for Bosch Performance Line CX, black
- CHAIN
SRAM X0 T-Type Eagle, 12 speed
- REAR DERAILLEUR
SRAM Xo T-Type Eagle, 12 speed

- SHIFTER
SRAM GX AXS pod 2, two button, MMX, 12 speed
- CASETTE
SRAM XS-1295 T-Type Eagle, 10-52, 12 speed
- HANDLEBAR
Race Face Turbine R, 35mm rise, 35mm bar bore, 800mm wide
- GRIPS
Whyte Lock-On Enduro Grip
- STEM
Race Face Atlas, 35mm bar bore, 35mm extension
- BRAKES FRONT
SRAM Code RSC, four piston hydraulic with sintered metal pads, 220mm diameter disc rotor
- BRAKES REAR
- SRAM Code RS , four piston hydraulic with sintered metal pads, 200mm diameter disc rotor
- BRAKE LEVERS
- SRAM Code RSC, MMX
- SADDLE
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
- SEATPOST
Crank Bro High-Line 3, 30.9mm, M/L 150mm travel, XL 170mm travel, High-Line ball socket remote lever 170-200mm travel, MMX Paddle remote lever
- SIZES
M, L, XL
- COLOUR
Gloss Orange with Matt Black
- WEIGHT
tbc
