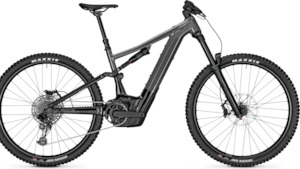

Focus Sam² 6.7 Bosch 2023 E-Mountain Bike

2023 FOCUS SAM2 6.7 BOSCH DESCRIPTION

- BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE AND LED REMOTE PLUS 625 WH BATTERY
- 180 MM TRAVEL SR SUNTOUR DUROLUX 38 SUSPENSION FORK AND 170 MM F.O.L.D. KINEMATICS WITH ROCKSHOX DELUXE SELECT COIL REAR SHOCK
- FULLY INTEGRATED C.I.S. CABLE ROUTING WITH TRAIL-READY SRAM NX EAGLE SHIFTING AND SRAM DB8 4-PISTON BRAKES DESIGNED FOR DOWN SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the FOCUS SAM² 6.7 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 625 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. BIKE DESIGN FOR OPTIMAL PERFORMANCE IN ANY SITUATION

Thanks to the long wheelbase and slack head angle, the FOCUS SAM² 6.7 rides super stable even at high speed in roughest terrain. It has a perfect stiffness-to-weight ratio because the slide-out battery only requires a minimal cut-out in the down tube. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes this e-MTB more stable on descents. The low stand-over height gives you generous space for moving and enables you to handle your bike perfectly in technical terrain. By turning the headset cups, you can easily change the head angle of your FOCUS SAM² 6.7 according to your riding preferences from 64.5° to 63.5°. MADE FOR THE ROUGHEST TRAILS

The kinematics of our FOCUS SAM² 6.7 is made for the roughest rides. Our upgraded F.O.L.D. (FOCUS Optimised Linkage Design) is the core component of this bike and optimised for its purpose. It allows the integrated and easily adjustable air shock to work best. With 180/170 mm travel, a suspension fork with 38 mm stanchions and fast 29" wheels, the FOCUS SAM² 6.7 is ready to shred. You can always rely on strong Sram brakes with large 220 mm rotors that are easy to maintenance. FRAME 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm FORK SR Suntour Durolux 38, RC2 29, 110x15 mm, 44 mm rake TRAVEL OF SUSPENSION FORK 180 mm SHOCK Rock Shox Deluxe Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing MOTOR Bosch Performance CX Gen4, 85 Nm, 250 W BATTERY WATT-HOURS 625 Wh BATTERY AMPERE HOURS 17.4 Ah DISPLAY Bosch LED Remote SHIFTER SRAM SX Eagle, 12-speed REAR DERAILLEUR SRAM NX Eagle, 12-speed SPROCKET SRAM PG-1230 NX Eagle, 12-speed CHAIN SRAM SX Eagle, 12-speed CRANKSET Samox EC40 ISIS TRANSMISSION OF DRIVE Front: 36T, Rear: 11-50T BOTTOM BRACKET Integrated in Drive Unit HANDLEBAR Aluminium, 800 mm, rise: 30 mm, backsweep: 9° STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium HEADSET ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset SADDLE Selle Royal Groove SEATPOST Post Moderne dropper post PM-214, 34.9 mm BRAKE CALIPER SRAM DB8, 4-piston, hydraulic disc brake BRAKE LEVER SRAM DB8, 4-piston, hydraulic disc brake BRAKE Disc RIMS RODI TRYP30, 30-622 REAR HUB Novatec D462, 12x148 mm FRONT HUB Novatec D041, 15x110 mm thru axle TIRES Maxxis Minion DHF, EXO, 63-622 GEARS 12 BIKE WEIGHT INCL. BATTERY IN KG 25.0 SIZE S, M, L, XL

Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.

Subject to technical modification without notice. Errors and omissions excepted.

Weight in size M, of standard specification and without pedals.
