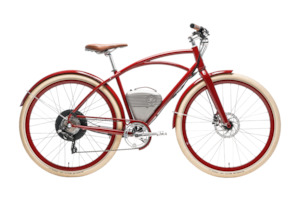

Vintage Electric Cafe Series E-bike

The Vintage Electric Cafe is the commuter electric bike rebooted. This wolf in sheep’s clothing is our equivalent of a 500HP V8…hidden under the hood of the family sedan. With 3X the power of its competitors the Cafe walks quietly, but carries a big stick. Wedged within the mild-mannered-styling of the pedal assist commuter, is a ferocious power plant, producing a surreal level of speed and acceleration. All the benefits of bicycle commuting have been amplified by the electric drive train and vintage-inspired aesthetics, putting the Cafe electric bike in a lane of its own. Specifications TOTAL WEIGHT: 56.2 lbs (25.49 kg) BATTERY WEIGHT: 9.4 lbs (4.26 kg) MOTOR WEIGHT: 7.5 lbs (3.4 kg) FRAME MATERIAL: Chromoly Steel FRAME SIZES: 17.5 in (44.45 cm) 18.5 in (46.99 cm) 19.5 in (49.53 cm) GEOMETRY MEASUREMENTS: Medium 18.5 Measurements: 18.75" Seat Tube, 22.5" Reach, 31.5" Stand Over Height, 28" Width, 72" Length, Small 17.5 Measurements: 17.75" Seat Tube, 31" Stand Over Height FRAME TYPES: High-Step FRAME COLORS: Skyline Bronze, Golden Gate Red FRAME FORK DETAILS: Rigid Aluminum Alloy, 100 mm Hub Length, 15 mm Maxle with Quick Release FRAME REAR DETAILS: 135 mm Hub, 12 mm Axle with Nuts ATTACHMENT POINTS: Rear Rack Bosses, Fender Bosses GEARING DETAILS: 10 Speed 1x10 Shimano Deore XT Derailleur with Shadow Plus Clutch, 11-34T Cassette SHIFTER DETAILS: Shimano SLX Two-Way Triggers on Right CRANKS: FSA CK-633 F. Gimondi, Aluminum Alloy, 170 mm Length, F. Gimondi 44 Tooth Chainring PEDALS: MKS, Aluminum Alloy Platform, Silver HEADSET: Tapered 1-1/8" to 1-1/2" Sealed Cartridge STEM: Promax, Aluminum Alloy, 70 mm Length, 7° Angle, 31.8" Clamp Diameter HANDLEBAR: Low-Rise, Aluminum Alloy, 700 mm Length BRAKE DETAILS: Shimano Hydraulic Disc with 180 mm Front Rotor, 160 mm Rear Rotor, Three-Finger Shimano Levers with Adjustable Reach GRIPS: Velo, Stitched Leather with Lockers SADDLE: Velo, Leather, Perforated Dual Density with Integrated Supernova LED Light SEAT POST: Aluminum Alloy SEAT POST LENGTH: 350 mm SEAT POST DIAMETER: 27.2 mm RIMS: Aluminum Alloy, Double Wall, Color Matched, 36 Hole SPOKES: Stainless Steel, Hand Laced and Tensioned, 14 Gauge Front, 13 Gauge Rear, Adjustable Nipples, Silver TIRE BRAND: Schwalbe Fat Frank, 28" x 2.0" WHEEL SIZES: 28 in (71.12cm) TIRE DETAILS: 30 to 65 PSI, Reflective Sidewall Stripe, Available in Black or Creme Colors, Active Line K-Guard Puncture Protection TUBE DETAILS: Presta Valve ACCESSORIES: Premium Flick Bell, Greenfield Center Mount Kickstand, Aluminum Alloy Paint-Matched Fenders, Aluminum Alloy Paint-Matched Chain Cover, Integrated Supernova E3 E-Bike V6S Headlight (165 Lumens), Integrated Supernova E3 Rear Light MOTOR BRAND: Custom TDCM MOTOR TYPE: Rear-Mounted Gearless Direct Drive Hub MOTOR NOMINAL OUTPUT: 750 watts MOTOR TORQUE: 70 Newton meters BATTERY VOLTAGE: 48 volts (35 Amps Continuous) BATTERY AMP HOURS: 10.4 ah BATTERY WATT HOURS: 499.2 wh BATTERY CHEMISTRY: Lithium-ion CHARGE TIME: 2 hours ESTIMATED MIN RANGE: 20 miles (32 km) ESTIMATED MAX RANGE: 60 miles (97 km) DISPLAY TYPE: Fixed, Monochrome, Backlit, LCD Display, (Hold Up for Lights, Hold Down for Walk Mode, Hold Up and Down for Settings) READOUTS: Battery Level (5 Bars), Speed, Avg Speed, Max Speed, Odometer, Trip, Trip Time, Amp Output Chart, Assist Level (0-5) DRIVE MODE: Torque Sensing Pedal Assist (Torque Sensing Bottom Bracket, Left and Right Side) TOP SPEED: 28 mph (45 kph)

Please follow this link.
