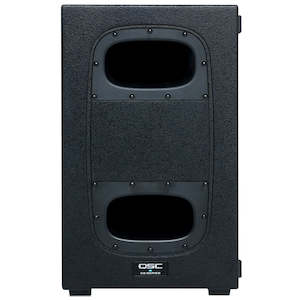

KS112 Compact Powered 12" Subwoofer
The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.
Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).
Features High Output in an ultra-compact form factor 2000 Watt class D amplifier module 12-inch, long-excursion driver; 6th order bandpass design Variable crossover and savable/recallable scenes for commonly-used applications Intrinsic Correction™ tuning and loudspeaker management Refined, professional appearance looks great in any application Rugged painted wood enclosure for long life and lasting durability Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings Optional KS-LOC security cover prevents unauthorized tampering of controls Complete EASE & CAD information available online 6-Year Warranty with registration
SPECIFICATIONS Configuration 6th-Order Bandpass Subwoofer LF Transducer 12-inch (305 mm), Cone Frequency Response (-6 dB) 41 Hz - 108 Hz Frequency Range (-10 dB) 38 Hz - 121 Hz Maximum Rated SPL1 128 dB @ 1 m (peak) Amplifier Class D 2000W (peak) Cooling Low-noise, variable speed fan Controls Power On/Off Gain Control Rotary encoder 2 x selection buttons Indicators 2 x Power LED (front and rear) Input Signal LED Limiter Active LED Connectors 2 x locking XLR/F 1/4" combo 2 x XLR/M (Loop-thru Output) 1 x locking IEC power connector AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A Enclosure Details Enclosure 15 mm Birch Plywood Color Black (RAL 9011) Grille Internal woofer cover Dimensions (HWD) inches 24.5 x 15.5 x 24.25 Dimensions (HWD) mm 622 x 394 x 616 Net Weight 28.4 kg (62.6 lbs) Shipping Weight 34.5 kg (76 lbs)
QSC KS112-CVR Padded Cover Available Separately.
