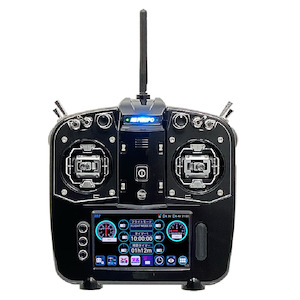

ELITE 16 Channel, 28 Channel with Computer Mixing, Radio by JR Propo

ELITE 16 Channel, 28 Channel with Computer Mixing, Up to 64 Channels in XBus mode, Radio by JR Propo. Tx only

Taking pre orders Now. All enquiries to; theteam@airsail.co.nz

Expected delivery date end of June 2022

This is a highly developed product with outstanding that concentrates the essence of the technology built up by this JR PROPO　through many decades of experience. Highest reliability of JR PROPO DMSS2.4GHz　RF system provided to our complete new highest end product “ELITE" has debuted.

The processing speed of the program largely improved, brushing up a system one by one.

The flat design which eases for handling and CNC full metal gimbals maintain ultimate operability. 2.5mm Metal front garnish utilized the stiffness over the transmitter case and made the whole transmitter as light as possible.

Conventional “PWM" or serial Bus communication of JR original protocol “XBus" are available for the control system.

Newly developed servo “ID" scan function is equipped, previous transmitter was not able to find the Servo ID but now it is possible to find the ID.

The new era shall begin.

Link to Santiago Perez video getting some stick time on the JR Propo Elite

Download User Manual Here

System

━━━━━━━━━━━━━━━━━━━━━━━━━

Modulation: DMSS (Dual Modulation Spectrum System)

Type of control ： 28 Channel Computer Mixing

Radio Frequency ： 2.4GHz

Power source ： 7.2V Lithium Ion battery

Neutral position ： 1.5ms

Channel numbers ： 16ch （ FAST MODE ） / Maximum 28ch （ FAST 12ch / SLOW 16ch combined ）

- Features

■ CNC machined and painted transmitter case components
■ Quick response touch screen
■ Precise CNC machined metal stick gimbals
■ The latest Android format & new main mother board
■ High resolution Stick Control
■ CPU Cooling fan (automatic temperature sensing)
■ 28 channels in PWM mode / 64 channels in XBUS
■ The latest XBUS communication installed
■ Upgraded telemetry sensor capability/each telemetry function can handle 8 sensors
■ Voice alerts
■ XBUS Servo Programmer installed
■ Sequencer function for landing gear
■ SD Card slot available
■ USB Port Equipped (Capable to use PC Mouse operation)
- BASIC

【Function List】

■Reverse Switch
■D/R & EXP (Dual rate, Exponential)
・2segment / maximum15systems（SW Select / each flight mode）
・Type selectable（NORM / CURVE）
・・Curve set up： Mid8points over multi points
・Position set up：Maximum 15systems
Sub Menu
・・・Delay Setting
・・・Auxiliary Channel
■SUB TRIM
■Travel adjusts
■Monitor (Servo monitor)
Sub Menu
・・・Detail of channel
・・・Servo Test（Neutral/Slow/Quick/Step）
■LIMIT ADJUST
■SERVO SPEED
・right & left （up or down） Capable to put 2segment
・2systems
■OUTPUT CURVE
・Mid8points over multi points
　 Sub Menu
・・・TRIM INPUT SETTING
■THROTTLE TRIM
・Throttle Cut （W/ Time lag function）
・Throttle Trim Memory
・Idle Adjustment
■PROGRAM MIXING
・Maximum 10systems （SW select / each flight mode） W/Exponential
・Type selectable (Normal/Curve)
・・Curve set up : Mid8points over multi points
　 Sub Menu
・・・Delay Setting
・・・Trim Input Setting
■TIMER
・3systems (Down timer/ Stop Watch)
・SW Select （Comply w/ Stick Position Switch）
・capable to set vibrator
　 Sub Menu
・・・Interval Timer
・・・Accumulation Timer , Initialize
・・・Timer record: 20files

【System List】

■MODEL SELECT
・Model Memory： Maximum 100files
　 Sub Menu
・・Backup And Restore
・・Sort
・・Display Mode
■CHANNEL SETTING
　 Sub Menu
・・・Aux Channel Setting：Up To 28ch
■TYPE SELECT
・3 Types（Airplane / Helicopter / Glider）
■FAIL SAFE
・HOLD / F.S Selectable
■WARNING
・SW SEL. / Capable to set on each flight mode SINGLEBR
