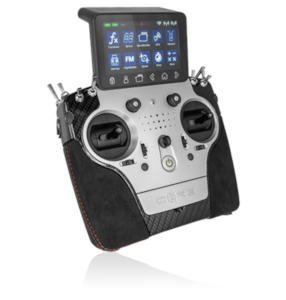

Powerbox Radio System CORE with PBR-9D Receiver
PowerBox CORE - the new generation of pro-class radios
INDENT PRE ORDER ONLY, TAKING ORDERS NOW
For International shipping costs please enquire. Features
- 26-channel full 4096 step resolution radio control system
- extremely secure against interference, genuine redundant 2.4 GHz transmission
- extremely long range
- redundant PowerBox power supply system with LiIon batteries
- high-performance real-time telemetry
- up to 800 telemetry values per second
- open bus interface for servos and telemetry
- sensors and receivers can be set up conveniently from the transmitter
- up to four equal-value receivers can be bound to the transmitter
- identical high-speed telemetry and reception for all four receivers
- robust stick units machined from solid aluminium
- quadruple ballraces
- hall sensors for sticks and slider controls
- 20 transmitter controls 2 optional stick switches
- full-color screen with capacitive touch-screen
- high-contrast screen, legible in sunlight
- ultra-simple programming even for complex models
- intuitive menu system with Smartkeys
- speech output using licensed Acapella TTS module
- speech output without.wav files – only text input required
- supports eight languages with different voices
- 12 flight modes with priority control
- comprehensive timer options
- virtual switches
- servo cut-off function
- receivers can be updated by radio from the transmitter
- perfectly balanced transmitter
- Alcantara handrests for maximum possible comfort in use
- File Manager for exchanging data and backing up models
- integral GPS system
- Linux PC system for every imaginable expansion
- transmitter options and switches installed individually to the customer’s specification
- Made in Germany! Set contents
- PowerBox CORE
- 1x PBR-9D Rx
- case
- padded neck strap
- main adapter
- conversion tool
- sticker set
- screen cleaning cloth
- exclusive Shirt "CORE", navy
- Instruction manual in german and english
Since the introduction of the CORE early in 2019 we have seen the establishment of a steadily growing community of pilots who are determined to make full use of the advantages of this unique radio control system. Ultra-simple programming - even where complex models are involved - redundancy in the battery and radio circuits, and huge potential for the future: all these features very quickly made a deep impression in the marketplace once the first systems had shipped.
We have a highly motivated team of developers working continuously on expansions and improvements to the system. We also receive ideas from customers which we always consider, to ensure that we provide the maximum possible in terms of performance and facilities. Every transmitter is hand-assembled to the customer’s precise specification in our factory at Donauwörth, where it is also checked. This means that the system is designed, developed and produced all under one roof - genuine “Made in Germany".
Radio transmission
The radio link is based on an extremely effective frequency-hopping process in the 2.4 GHz band. The system range of more than 9 km is unique in the marketplace, and offers the unprecedented system reserves which are essential for maximum safety and security - especially where conditions are difficult.
The CORE features a redundant radio link which is monitored by the receiver. If a fault occurs in one transmission circuit, the receiver can immediately warn the user of the problem via telemetry. The system’s reliability and interference rejection characteristics have already been demonstrated at a number of major flying events. Even when RF conditions are extremely unfavourable you can rely on the CORE.
Power supply
PowerBox-Systems is famous for its redundant power supplies, and the CORE’s power system naturally incorporates this: two separate Li-Ion battery units are used, each rated at 3400 mAh / 7.2 V, and the entire power regulation circuit is also duplicated - a feature currently available only in the CORE. The transmitter’s operating time is around eight hours, measured with the screen set to maximum brightness and the system at maximum load.
High-speed signal transmission
The CORE provides 26 channels, each with 4096-bit resolution. Despite this, the control data are transmitted using a 10 ms frame rate with zero delay. All channels have full resolution, and there are no limitations to the frame rate.
