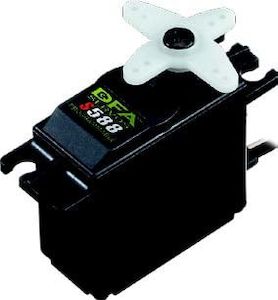

JR/DFA S588 WIDE VOLTAGE XBUS PROGRAMMABLE SERVO

Torque:5.2 (4.8V)/6.5 (6.6V)/7.7 (7.4V)kg-cm
Speed:0.28 (4.8V)/0.2 (6.6V)/0.19 (7.4V) sec/60°
Weight:42g S Series Servos - Programmable Wide Voltage XBus compatible servos has been released.

JR/DFA is pleased to announce the release of our new XBus S series servos, allowing not only serial servo connection, but also individual servo programming with servo adjustments to suit every application.

Highlights :
The S range of servos automatically detect the type of output they are plugged into - conventional receiver PWM outputs, or XBus. This means NX series servos are XBus compatible, and also compatible with PWM receiver signals without any converter, allowing modelers to use conventional receiver systems.
Compatible receiver systems : DMSS · DSM2 · 72MHz · 40MHz

When used on a JR XBus system, the S series servos can be programmed in ways not previously possible. No additional programming device is necessary these servos can be setup using a JR XG series transmitter.

Changes made to servo programming are immediately apparent. Not only can servo direction and travel be adjusted, but it is now possible to fine tune servo gain, dead band and boost to suit your aircraft and desired response. This precise setup allows servo hunting to be eliminated and precise feel maintained.

For General use of RC air planes

Dimensions 33.5 x 19 x 38.5mm
Wire Length 300mm
Voltage Range 4.5V - 8.5V
· Wide Voltage
· Single ball bearing

Do not use this servo under the different voltage other than specified
