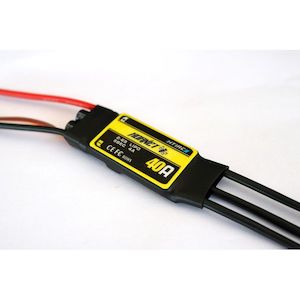

#H-40A. Hornet 40A. Aircraft Heli ESC. Burst 40A/50A 2-6LiPo 5-18NC SBEC 5.0/4.0A, 52x25x11mm, 35g. By HTIRC
Functions & Features:
● Programmable features from Transmitter or Program Card (sold separately)
a. Brake on/off
b. Battery Type, NiMh/Lipo
c. Direction of rotation
d. Soft start, enable/disable
e. LVC, reduce power/cutoff
f. Timing, Auto 7-30 degrees, Soft 7 degrees, Advance 22-30 degrees
g. PWM Frequency, 8kHz, 16kHz
h. Governor Mode (Heli) on/off
i. Cut Off Type, Reduce power/cutoff
j. Acceleration, Low, Normal, High
k. Brake, Off, 20%, 50%, 100%
l. Start Power, Hard/Soft
m. PWM Frequency, 8kHz, 16kHz
n. Battey Type, NiMh/LiPo
o. Direction of rotation
p. LVC, Low 3.1V, Normal 3.2V
q. Governor Mode (Heli) on/off
r. Advanced Timing. Fixed 8,16. Auto. Soft 0-7, Medium 8-15, Hard 16-25
● Over-heat protection: Power will auto reduce when the temperature reaches 120℃.
● Elaborate circuit design with strong anti-interference features.
● Safety functions;
1. Abnormal input voltage protection.
2. Low battery voltage protection.
3. Over-heat protection.
4. Throttle signals loss protection.
