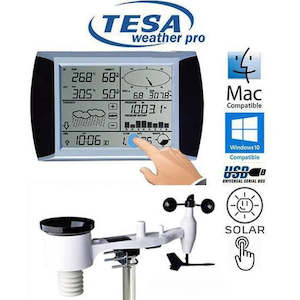

Tesa WS1081 Ver3 Touch Screen with PC interface Weather Station
Professional Wireless Touch Screen Weather Station with solar assisted outdoor multi-sensor, USB Computer Connection supplied with easy to install multi-sensor for the Wind Direction/wind Speed, Rainfall, Humidity and Temperature sensors.
WS1081v3 - User Manual
WS1081v3 - Easyweather on Windows and Mac
WS1081v3 - Third-party software from Cumulus
WS1081 - Macintosh Weather Station Software by Trixology WeatherCat
WS1081 - Weather Display Live - View live weather data over the web from your weather station in nearly real-time.
WS1081 - How do I set up my weather station and share my data with Weather Underground?
Features:
- Touch screen panel
- USB port for easy connection to PC computer, now also available for Mac.
- All the weather data from the base station and weather history data with user adjustable measuring intervals can be recorded and uploaded to your computer.
- Free PC/Mac software for transfer weather data.
- Rainfall data (inches or millimeters): 1-hour, 24-hour, one week, one month, and total since last reset.
- Wind chill and Dew point temperature display (°F or °C)
- Records min. and max. wind chill and Dew point with time and date stamp
- Wind speed (mph, m/s, km/h, knots, Beaufort)
- Wind direction display with LCD compass
- Weather forecast tendency arrow
- Weather alarm modes for a) Temperature b) Humidity c) Windchill d) Dew point e) Rainfall f) Wind speed g) Air pressure h) Storm warning
- Forecast icons based on changing barometric pressure
- Barometric pressure (inHg or hPa) with 0.1hPa resolution
- Wireless outdoor and indoor humidity (% RH)
- Records min. and max. humidity with time and date stamp
- Wireless outdoor and indoor temperature (°F or °C)
- Records min. and max. temperature with time and date stamp
- 12 or 24-hour time display
- Perpetual calendar
- Time zone setting
- Time alarm
- High light LED backlight
- Wall hanging or freestanding
- Synchronized instant reception
- Low power consumption (over 2 years battery life for transmitter) Specifications:
- Outdoor temperature range: -40.0 °C to 65.0 °C
- Indoor temperature range: 0 °C to 50.0 °C
- Humidity range: 10% to 99% (1% resolution)
- Rain volume display: 0 - 9999mm (show OFL if outside range)
- Resolution : 0.3mm (if rain volume< 1000mm)
- 1mm (if rain volume >1000mm)
- Wind speed: 0~100mph (show OFL if outside range)
- Measuring range air pressure: 27.13inHg - 31.89inHgResolution : 0.01inHg
- Alarm duration : 120 sec
- Transmission range up to 100m
- Power consumption:
- a) Receiver: 3 x AA alkaline batteries
- b) Multi sensor : 2 x AA alkaline batteries
- Screen size 14.6 L x 10.9 H cm
- Base station size 23 L x 14.5 H cm
Parts:
WS14CN - Multi-sensor
