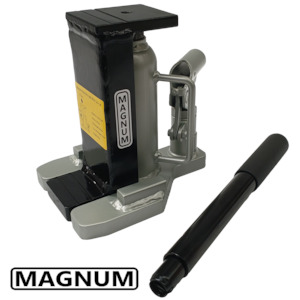

4 Ton Toe Jack

- Capacity 4 Ton to 30 Ton
- Heat treated & chrome plated hydraulic rod provide longer seal life and optimum performance.
- Internal safety valve prevents toe jack from being used beyond its rated capacity.
- Housing welding onto the forged base ensures to be free of leakage problem.
- High strength Toe-Lift for long life use.
- Low toe heights fit in tight clearances.
- Swivel sockets for easy operation.
- Can be operated quickly by hand without a loading.
- Removable handle saves the handle force during operation.
- Max. working pressure 700 bar / 10,000 psi. ---

Model No. Top Cap

Toe-Lift
Cap Stroke Min.
Height Max.
Height

Piston
Rod Dia.

Base
Dimensions

Height

Top-Lift
Weight U (Tons) F (Tons) (mm) A (mm) B (mm) J (mm) LxW (mm) H (mm) L1xW1 (mm) (kg) MAGTJ-040 4 2 110 204 314 25 150x200 19 65x50 9.0
