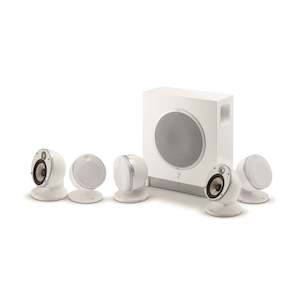

Focal - Dome Flax Pack 5.1 + Sub Air - Home Theatre System

Dôme Flax is a high-end home theatre system made in France, characterised by its miniature and high-tech design. Thanks to its Flax cone, made of linen, this 5.1 system gets a major improvement in definition and intelligibility of dialogues as well as a larger spacialisation thanks to a better linearity of the frequency response.

Room size: 100m2 to 130m2

The Dôme Flax system is associated with the wireless subwoofer Sub Air for a 5.1 configuration. Free from any cables, Sub Air offers an intense and deep sound and perfectly fits into all kinds of spaces with its flat and compact design. FLAX CONE

The flax cones are made in France exclusively by Focal since 2013. With their original design, the cones are entirely oriented towards acoustic performance. They are made of high quality flax fiber enclosed by two thin layers of glass fiber.

Flax cones are characterized by their natural sound, with low coloration, their richness of reproduction in the midrange register and their tighter bass. The lightness of the fiber satisfies the criteria of high internal damping, high velocity and high flexural rigidity.

Flax is twice as light as fiberglass, because the fiber is hollow. It also has very low elasticity which makes it ideal to increase the flexural rigidity of a sandwich structure.

As for the style, Dôme has a refined design, perfectly in line with current trends.
No visible screws with cover, noble materials combined with a luxury finish providing high perceived value, it can be rotated and it is easy to integrate by mounting to a wall, the ceiling or a stand. KEY POINTS

- High-fidelity speaker, patented Flax technology
- Focal sound with advanced technologies
- Integrated speaker: in wall, in ceiling, on furniture or standing
- High-gloss lacquered Aluminium body
- Made in France DESIGN - NEW GENERATION HOME-CINEMA Dôme is at the forefront of innovation. Its spectacular sound makes it ideal for spaces in the region of 130m2. This speaker is multi-directional and can be fitted to a wall, the ceiling or a stand with equal ease. Thanks to its combination of power and eloquence, it exemplifies the concept of “sound spot".

The Dôme is a high-end miniature speaker that opens the door to a whole new dimension of sound. This speaker is made in France and incorporates Focal loudspeaker technology from the brand’s most prestigious models. The Dôme has a sleek design without any visible screw fittings, and is made using sophisticated materials with luxury finishes.
TECHNICAL SPECIFICATIONS - DOME FLAX SATELLITE SPEAKER 2-way compact sealed speaker
Drivers 4" (10cm) Flax mid-bass and 1" (25mm) Al/Mg inverted dome tweeter
Frequency response (±3dB) 80Hz - 28kHz
Low frequency point (-6dB) 72Hz
Sensitivity (2.83V/1m) 88dB
Nominal impedance 8 Ohms
Minimum impedance 4 Ohms
Crossover frequency 2500Hz
Recommended amplifier power 25 - 100W
Dimensions (HxWxD) 172x144x143mm
Net weight 1.9 kg
TECHNICAL SPECIFICATIONS - SUB AIR SUBWOOFER

Flat bass-reflex subwoofer, integrated 150W BASH® amp:
Speaker driver (diameter) 8" (21cm)
Bass cutoff frequency (-6dB) 35Hz
Frequency response ( /- 3dB) 40Hz-200Hz
Crossover cutoff frequency variable 50 Hz - 200 Hz
Input panel Left Right / LFE
Continuous power output 110 W
Peak power 150 W
Phase adjustment 0 - 180° switch
Power functions ON Auto (1 W) OFF (0,5 W)
Dimensions (HxWxD) 410mmx360mmx160mm
Weight 7.65 Kg

Wireless connection:
Range 15 metres (in a room)
Sound Sampling 16 bits
Sampling Frequency 44,1kHz
Coding delay (latency) 13ms
Radio transmission powers or sensitivity 0dBm
Radio transmission frequency band 2.4Ghz ISM band
