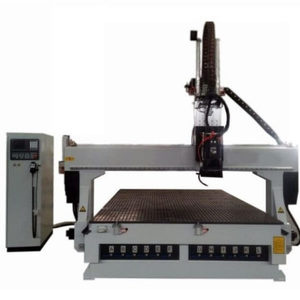

H-2040AC4 4-axis Auto Tool Change CNC Router 2000x4000x500mm - HELINER

- -AXIS X, Y, Z, B Heavy Duty CNC Router for wood, plastic and aluminium.
- Vacuum Table
- Italian HSD 9KW Air Cooling Spindle Category: CNC Router

- Description
- Additional information Description Working Area Working area X 2000mm, Y 5000mm, Z height 500mm Spindle HSD Air cooling spindle 9KW, ISO30 Chuck, ER32 Collet (Default) Tool Magazine 8 positionsl tool magazine (customizable) Axis X, Y, Z and B (swing from -90° to 90°) Motors and Drivers Servo motors and drivers

X, Y-axis rack and pinion transmission

Z-axis 25mm ball screw Control System Syntec 6 Control Inverter 11kw Vacuum Table 8 individual channels T-Slot Suction. 2x 7.5KW Pump Coolant System Optional Max Spindel Speed 2 000 RPM Max Feed Rate 35m/min Repeat Accuracy ±0.025mm Power Power 15V 3-phase Support Files NC G Code Safety Emergency Stops

All parts compliant with AS/NZS Safety Standards

Installation procedures compliant with Worksafe NZ. Warranty 12 months Additional infor.....
