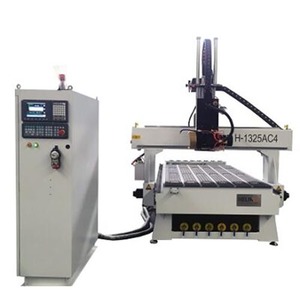

H-1325AC4 4-axis Auto Tool Change CNC Router 1300x2500x400mm - HELINER

- -AXIS X, Y, Z, B CNC Router for wood, plastic and aluminium.
- Vacuum Table
- Double-guided linear rails on both X and Y axes significantly increase the rigidity of the machine.
- A one-year subscription to Fusion360 with the dedicated postprocessor Category: CNC Router

- Description
- Additional information Description SPECIFICATION (DEFAULT) Working Area X 1300 x Y2500 x Z 00mm (size customizable) Spindle 6kW, air-cooling, ISO30 tool holder (customizable) Axis X, Y and Z, B (swing from -90° to 90°) Spindle Speed 0-2 ,000 RPM Table Vacuum table (6 independent channels) T slots Control System Syntec Control Motor and Driver Servo motors and drivers (customizable) Tool Magzine 8-position linear tool magazine (customizable) Repeat accuracy ±0.025mm Speed Max feed rate 35m/min Power Power 15V, 3-Phase Weight 1600kg Other features Auto lubricant system, Precision Tool calibration sensor Safety Multiple Emergency Stops
Spindle Safety Guard an.....
