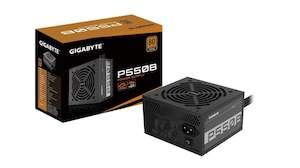

Gigabyte GP-P550B 550W ATX 85/88/85 MEPS PSU - 3 Year Warranty

Features

- 80 PLUS Bronze certified
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single 12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS BRONZE CERTIFIED

80 Plus Bronze certified ensures the power supply delivers 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. RELIABLE FLAT CABLE

P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

The life of the Hydraulic Bearing fan is more than 4 years. 120MM SILENT HYDRAULIC BEARING (HYB) FAN

120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time. SINGLE 12V RAIL

Single 12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. PROTECTION

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. Specifications

- Model
P550B
- Type Intel Form Factor ATX 12V v2.31
- PFC Active PFC(>0.9 typical)
- Input Voltage 100-240 Vac(full range)
- Input Current 8-4 A
- Input Frequency 60-50 Hz
- Output Capacity 550W
- Dimension 150 x 140 x 86 mm
- Fan Type 120mm Hydraulic Bearing (HYB) Fan
- 80 PLUS Bronze
- Efficiency 85% at typical load
- MTBF >100,000 hours
- Protection OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal 100-500ms
- Hold Up Time >16ms
- Cable Type Flat, All black
- Connectors ATX/MB 20 4 Pin x 1 : 550mm 1
CPU/EPS 4 4 Pin x 1 : 600mm 1
PCI-e 6 2 Pin x 2 : 550mm 150mm 1
SATA x 6 : 500mm 120mm 120mm 2
4 Pin Peripheral x 3 4-Pin floppy x 1 : 500mm 120mm 120mm 120mm 1
