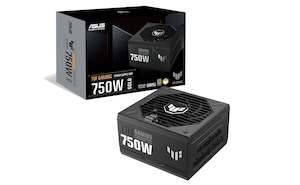

ASUS TUF GAMING ATX 3.0 750W Power Supply 80 Plus Gold - 12VHPWR 12+4-Pin - Full Modular - 10 Years Limited Warranty

Better, Faster, Stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise. 10-year Product Coverage

A Decade of Power​

We're so confident about the reliability of the TUF Gaming 750W Gold that we back it with a 10-year worldwide product coverage. Fully Modular hed Cables

Supple Ply

The included fully-modular cable set is hed to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces. Specifications

Model

TUF Gaming 750W Gold

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

3.3V 5V 12V -12V 5Vsb

Maximum Load

25A25A62A 0.8A 3A

Combined Load

130W 130W 744W 9.6W 15W

Total Output

750W

Connectors

MB 24/20-pin x 1
CPU 4 4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400 120mm)
SATA 1-to-3 Cable x 1 (400 120 120mm)
Peripheral 1-to-4 Cable x 1 (400 150 150 150mm)
TUF Gaming Cable tie x 3
User Manual x 1

Weight

2.38kg (single PSU)

0dB Fan Button

No
