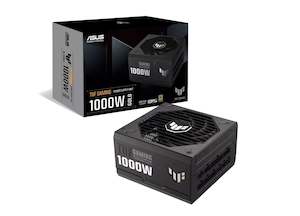

ASUS TUF GAMING ATX 3.0 1000W Power Supply 80 Plus Gold - 12VHPWR 12+4-Pin - Full Modular - 10 Years Limited Warranty
The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that's engineered for the long haul.
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular hed cables keep your rig neat and tidy.
Built For The Long Haul
The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.?
TUF Components - Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.?
Dual Ball Fan Bearings - 2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating - All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
80 Plus Gold Certification - Heart of gold
The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation - affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.?
ATX 3.0 Compatible - Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.?
Axial-tech Fan Design - Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Fully Modular hed Cables - Supple ply
The included fully-modular cable set is hed to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
Specifications
Model
TUF Gaming 1000W Gold
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
3.3V 5V 12V -12V 5Vsb
Maximum Load
25A25A83.3A 0.8A 3A
Combined Load
130W 130W 1000W 9.6W 15W
Total Output
1000W
Connectors
MB 24/20-pin x 1
CPU 4 4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400 120mm)
SATA 1-to-3 Cable x 1 (400 120 120mm)
Peripheral 1-to-4 Cable x 1 (400 150 150 150mm)
TUF Gaming Cable tie x 3
User Manual x 1
Weight
2.48kg (single PSU)
0dB Fan Button
No
