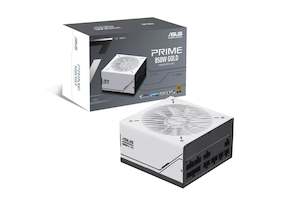

ASUS PRIME 850W 80+ Gold - Fully Modular - ATX 3.0 Power Supply - 8 Year Warranty
ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards. PRIME PERFORMANCE
With 80 Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs. DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. 80 PLUS GOLD CERTIFICATION
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation - affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability. ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities. CHOOSE YOUR STYLE
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
Specifications
Model
AP-850G
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
3.3V 5V 12V -12V 5Vsb
Maximum Load
20A20A70.5A 0.3A 2.5A
Combined Load
110W 110W 846W 3.6W 12.5W
Total Output
850W
Cable Connectors
MB 24/20-pin x 1
CPU 4 4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400 120mm)
SATA 1-to-3 Cable x 1 (400 120 120mm)
Peripheral 1-to-3 Cable x 1 (400 150 150mm)
User Manual x 1
Weight
1.502 kg (single PSU)
0dB Fan Button
No
