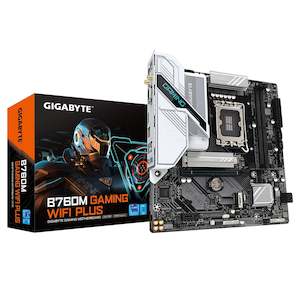

Gigabyte B760M Gaming Plus WIFI DDR5 mATX Motherboard
Overview
1 - D-Sub
2 - 6 2 1 Phases Hybrid Digital VRM Design
3 - 8 Solid Pin CPU Power Connector
4 - DisplayPort
5 - PCIe EZ-Latch
6 - Dual Channel SMD DDR5 Memory
7 - Support 14th/13th/12th Gen Intel® Core™ Processors
8 - Wi-Fi 802.11ac & BT
9 - HDMI
10 - PCI Express 4.0 Design
1 PCIe 4.0 x16 Slot
2 PCIe 4.0 x4 M.2 Connectors
11 - USB 3.2 Gen 1 Type-C®
12 - Q-FLASH Plus Onboard Button
13 - 2.5GbE LAN
14 - Audio Solution
8-ch HD Audio
Audio Noise Guard
High-End Audio Capacitors
15 - 4 SATA 6Gb/s
16 - RGB FUSION
2 Addressable LED Headers
1 RGB LED Header
17 - PCI Express 4.0 Design
1 PCIe 4.0 x16 Slot
2 PCIe 4.0 x4 M.2 Connectors
18 - PCI Express 4.0 Design
1 PCIe 4.0 x16 Slot
2 PCIe 4.0 x4 M.2 Connectors
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide prime performance and a timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components.
- 6 2 1 Phases digital PWM Low RDS(on) MOSFETs
- Support the latest CPUs and deliver enhanced system performance and ultimate hardware scalability.
Unlock DDR5
DDR5 Overclocking Up to 8000 and Beyond - GIGABYTE offers a tested and proven platform with an extreme memory performance boost.
Memory overlocking and XMP profile support may vary depending on hardware configuration.
Please see the complete validated memory support list. Product features may vary by model.
Shielded Memory Routing - All memory routing is under the PCB inner layer, which is shielded by a large ground layer to protect it from external interference.
Impedance-Optimised Topology—By optimising memory trace width, length, and style from HPC simulation to actual implementation, the overall impedance between the CPU memory controller and memory modules is lowered to achieve higher DDR5 speed.
Low Signal Loss PCB - Server-grade mid-loss or low-loss PCB material is chosen to lower signal loss inside the PCB and maintain DDR5's high-speed signal transmission.
Unlock DDR5 Voltage
GIGABYTE's Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming the Native DDR5 memory module into Overclocked DDR5 memory.
Secure Mode - Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
- Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with a wide range.
- Supports all PMIC vendors for maximum compatibility
Memory overclocking capability will vary based on the user's hardware configuration.
Achieve Higher DDR5 Memory Frequencies with Ease
The DDR5 XMP Booster function provides optimised pre-defined profiles based on memory IC and PMIC vendor analysis for effortless performance enhancement and eliminates manual configuration for overclocked DDR5 memory kits.
DDR5 MEMORY UPGRADE involves DDR5 memory overclocking; the overclocking capability depends on the user's hardware configuration.
Accelerate instantly - Boost memory performance instantly.
Automate input - No need to manually configure multiple memory parameters like clock, voltage, and timings.
Streamline overclocking - Overclock Native and XMP 3.0 DDR5 memory to higher frequencies.
Integrate database - Built-in database of pre-tuned profiles for different memory IC vendors.
Maximise DDR5 performance with your memory settings
XMP 3.0 User Profile empowers you to optimise your memory settings and achieve the best performance for your system.
SPD Re-defined or retrieve from database - Users can define two empty SPD profiles and transfer them to another computer.
Performance Simulation - Simulate memory performance quickly by inputting clock and timing parameters.
Save/Load Profile - Save and load memory profiles for online sharing.
Boost non-overclockable DDR5 memory frequency - Increase the frequency of non-overclockable DDR5 memory.
One-click Clear Profile - Reset memory settings conveniently.
Thermal - Enlarged MOSFET Heatsink
M.2 Thermal Guard
The M.2 Thermal Guard prevent
