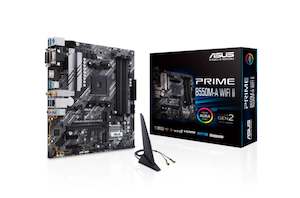

ASUS Prime B550M-A WIFI II mATX AM4 Motherboard
AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support
ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
- FEATURES
- AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2 utility
- Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
- Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware Technical Specifications:
- CPU: AMD AM4 Socket for AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
- Chipset: AMD B550 Chipset
- Memory:
- 4 x DIMM, Max. 128GB, DDR4
- 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory
- Dual Channel Memory Architecture
- ECC memory (ECC mode) support varies by CPU.
- Graphics:
- 1 x D-Sub
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI® port
- Supports 4K@60Hz as specified in HDMI 2.1.
- Graphics specifications may vary between CPU types.
- Expansion Slots:
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors: 1 x PCIe 3.0 x16 slot (supports x16 mode)
- AMD B550 Chipset: 2 x PCIe 3.0 x1 slots
- Storage:
- Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2 1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
- AMD Ryzen™ 4000 G-Series Desktop Processors: M.2 1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
- AMD B550 Chipset: M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- Support RAID 0, 1, 10
- Ethernet:
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth:
- Wi-Fi 6:
- 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
- USB:
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- Front USB: Total 6 ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features:
- Audio Shielding
- LED-illuminated audio trace path design
- Premium audio capacitors
- Dedicated audio PCB layers
- A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Back Panel I/O Ports:
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI® port
- 1 x Wi-Fi Module
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- Internal I/O Connectors:
- Fan and Cooling related:
- 1 × 4-pin CPU Fan header
- 1 × 4-pin CPU OPT Fan header
- 2 × 4-pin Chassis Fan headers
- Power related:
- 1 × 24-pin Main Power connector
- 1 × 8-pin 12V Power connector
- Storage related:
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB:
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers sup
