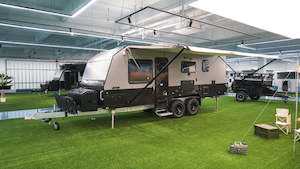

Explorer-22B

Explorer-21B

Basic Information

Body size

6425.5(L) 2210(W) 2095(H)/ mm

Interior dimensions

6355(L) 2134(W) 1960(H)/ mm

Overall size

8945(L) 2300(W) 3138(H)/ mm

ATM

3400 KG

GTM

3220 KG

Tare Mass

2780KG

Chassis material

iron pipe hot dip galvanized/galvanized pipe

Body structure

Fiberglass aluminum frame XPS Aluminum Composite Panel

Floor structure

plastic honeycomb board PVC floor adhesive

Distance from the ground

568mm (Drawbar)

Height of aluminum diamond plate

600mm

Sleep

Sleep capacity

5 people

Double bed size

2000 1500 mm

Size of triple bunk bed

1858 682 mm

Size of sofa bed

1830 900 mm

Mattress material

sponge mattress

Bedside cushion

Kitchen

Kitchen area

1830 900mm

Table

Pneumatic lifting table

Seats on sofa

4

Sofa

Black artificial leather

Tow System

Hitch

Australian standard off-road hitch; 3500KG

Safety chains

2

Axle and Suspension

Independent suspension system

Twin Axle

Axle

Ø 60 round steel

Damping

Spring damping rod, with a total load of 3500KG

Braking

12-inch electric brake with manual brake

Wheel hub

16-inch aluminum alloy

Tyre

265/75R16

Rear spare tire

265/75R16

Water System

Fresh water tank

2 95L

Grey water tank

125L

Water heater

14L Truma water heater (Electricity and gas integration)

Water pump

12V water pump with flow rate of 11.3LPM

Water inlet

gravity inlet and pressure reducing water inlet

Dry and wet partitioned bathroom

Bathroom shower

adjustable height

Wash basin faucet

hot and cold faucets

Sewage valve

External shower box (hot and cold water)

External single cooling brass faucet

Kitchen sink (with cutting board)

Gas System

9KG gas bottle rack

2

All copper gas pipe system

Slide out kitchen

Electric System

Front car connector

7-core flat connector

50A Anderson plug

Emergency braking system

Taillight set

License plate lights

2

Side wall lights

6

Front position lights

2

Reflective sheet

Battery isolators

Battery

maintenance -free battery, 12V100AH 3

Sine wave inverter

12V to 240V, 3000W, with charging function

Solar energy controller

20A and 2x Solar panels

Electricity display

electricity meter (digital display)

Water level display

freshwater level table and grey level table

External mains socket

220V -240V, 15A

External charging cable

10m

240V circuit breaker

12V circuit breaker

Available power outlets

110 ~ 240 V outlets 5, 5 USB sockets,

5 cigarette lighter

External electrical outlet

1 220V outlet (Australian standard), 2 USB

outlet 1 cigarette lighter

Lighting

LED

Electric Facilities

Thetford 3 gas 1 electric stove with oven and grill

(All -in-one combination unit with stove, grill and oven)

Thetford toilet

Thetford 184L refrigerator

Dometic Air Conditioner

Diesel Air Heater

Micro -wave oven

Kitchen extractor fan

MP5 player

Interior Speaker

2

Exterior waterproof speaker

2

Digital TV antenna

DOUBLEBREA
