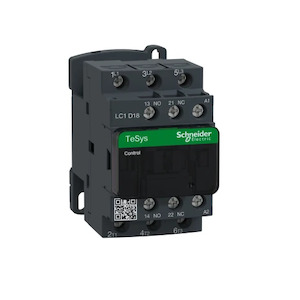

LC1D18F7C Schneider Electric LC1D Series Contactor, 110 V ac Coil, 3-Pole, 18 A, 7.5 kW, 3NO, 690 V ac

Coil Voltage 110 V ac Number of Poles 3 Contact Voltage Rating 690 V ac Contact Current Rating 18 A Series LC1D Power Rating 7.5 kW Range TeSys D Normal State Configuration 3NO Number Of Auxiliary Contacts 2 Auxiliary Contact Configuration 1NO 1NC Terminal Type Screw Width 45mm Length 77mm Depth 84mm Better World Verification Green Premium Better World Product Yes Minimum Operating Temperature -5°C Mounting Style DIN Rail Mount Pole and Throw Configuration 3P Maximum Operating Temperature 60°C Control Voltage 110 V ac
