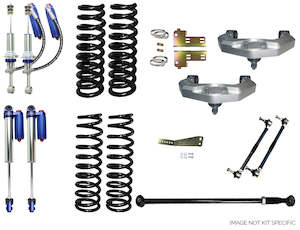

Lift Kit - Nissan Navara NP300 Coil Cab 2015-2022 - 75mm front - 45mm rear

This custom suspension kit includes EFS 4WD and Superior Engineering components to deliver a 75mm front lift and 45mm rear lift.

This lift kit suits the following vehicles:

- Nissan Navara NP300 2015-2022 models Fitment Notes Installation

These kits require a high level of technical expertise for correct installation to suit certification. Please ensure your installer is familiar with all the component requirements or talk to us first before purchasing.

Issues due to incorrect installation are not the responsibility of Force4. Rear Suspension

- Superior Shocks - The 45360 are chocked for rear coil captivity. Please allow seven days from order placement for these to be ready for dispatch (excludes pre-orders).
- Rear Springs - As a general rule, spring loading will ideally be within 150kg of constant rating for acceptable ride quality. E.g. for a 300kg constant spring, you would want 150kg of load.
- Adjustable Panhard - Usually required with NIS-123HDE and NIS-123EHDE rear coils

- Headlight Bracket - On HID model vehicles, the headlight adjuster must be disconnected before fitment of the lift kit. Certification

Some vehicle modifications require LVVTA Certification. The following products in this suspension kit may require LVVTA Certification:

- Upper control arms

- Panhard rod

This information is a guide-only and we recommend you contact your local certifier in all cases where certification may be required.

EFS Shocks

EFS provide a range of affordable, quality shock absorbers to suit all types of 4WD, whether you are an on-road only user, off the beaten track tourer or serious offroader. EFS Shock Absorbers are vehicle and height specific. "Not a one shock suits all approach".

General Specifications

- Long Travel Design - Maximises wheel articulation
- Twin Tube Construction - Increased control of the spring during rebound and compression cycles
- Quality Hardened Chromed Piston Rods Longer service life, and greater lateral strength
- 5mm Outer & Inner Wall Thickness Greater durability and strength
- Dynamic Motion Control Valve - Adjusts to different road & off road conditions
- Polyurethane and rubber bushes – HI quality elastomer and rubber mounting bushes to suit specific applications EFS Coil Springs

EFS Coil Springs are manufactured under a strict quality control system with the use of quality Spring steel. This ensures you are purchasing a high-quality product that is backed by a three year/100,000km warranty.

EFS Coil Springs are produced in a variety of raised heights, from standard to 125mm and also a variety of spring rates to suit different applications - Towing, load bearing accessories, increased ride height and off-road competition.

Specifications

- Shot Peened - To stress relieve the outer surface of the Coil, so the Coil can operate under higher fatigue & repeated load conditions to ensure longevity.
- Scragged for Quality Control -This is a process where the Coil is compressed beyond its yield point; this compression will set-up residual stresses and increase the elastic limit of the spring.
- Powder Coated - To resist corrosion & to protect the spring steel from minor damage. EFS Leaf Springs

Transform your rigid leaf sprung vehicle into a comfortable off-road performer with EFS leaf springs. Designed as a comfort leaf spring that incorporates special features that give the driver a comfortable ride on road and increased control off road, along with increased articulation and clearance.

Specifications

- Manufactured from high-quality grade alloyed carbon spring steel
- Tapered Leaf Ends to reduce the inter-leaf friction and to improve pressure distribution in the load bearing area
- Bolt Clip Liners to reduce noise and friction
- Inter-Leaf Graphite Coating and Leaf Insert Pads to further reduce friction
- Shot Peened & Scragged Tested to reduce stress and promote longevity
- Bolt Clips & Military Wraps to prevent leaf spread and provide safety
- Warranty - 3 year / 100,000 Km Warranty
- Available in 30mm to 80mm raised heights with a slight increase in spring rates over the original equipment. EFS Torsion Bars

The EFS Torsion Bar is increased in strength by 25% to 30% over the standard O.E Bar. EFS Torsion Bars will provide you with increased handling and response from your vehicle and compensate for extra loads.

Specifications

- Pre-stressed for longevity and durability
- Increased spring rate to compensate for load bearing accessories
- Made from High Carbon Alloy Steel (XK-5160)
- Bars
