BMW 3 Series E46 with RB / JZ / LS 1997-2006

FENIX: FTS0046-56M / -BL.
Core size: 550mm x 450mm x 52mm.
Replacement for:
1999-04 BMW 316i / 316ti / 316ti Compact E46.
1998-04 BMW 318i / 318d / 318ti / 318ti Compact E46.
1998-06 BMW 320i / 320d / 320td Compact E46.
1998-00 BMW 323i E46.
2001-06 BMW 325i / 325ti E46.
1998-00 BMW 328ci E46.
1999-06 BMW 330i / 330ci / 330d E46.
Engine type: Nissan RB20 / RB25 / RB26 / RB30 DE & DET / Toyota 1JZ 1.5JZ / 2JZ GE & GTE / General Motors LS.
Transmission: Manual.
Features:
• Dual pass baffling.
• Full Aluminium construction.
• 1/8" PT temperature sensor port and hex bung.
• V2 billet drainage bung.
• Embossed Fenix logo on side tank.
• Black powder coat finish.
• Includes gusseted upper mounting panel in black anodised finish.
NOTE: Will not suit M3 E46. Will not suit factory fan shroud.
Special Order options are made to order and can take up to 2 weeks to produce. prior to purchasing If your order is urgent.

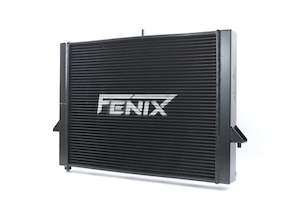

Designed to bolt directly into an E46 3-Series fitted with a RB, JZ or LS engine conversion. This Fenix Performance Alloy Radiator features a cross-flow 52mm core for ultimate cooling on the street or track.
Core size is tube and fin area only and does not include tanks or plate under tank.
