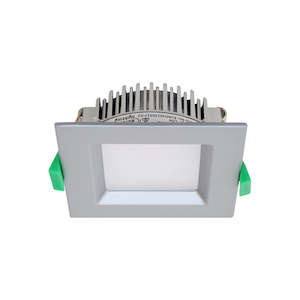

GEO12S - 12W Square Downlight

Use:
• Type - 12W Round Fixed CCT Downlight
• Use - Interior
• Warranty - 5 Years
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44
• Rating - IC-F/IC-4

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - >0.9

Light output:
• Lamp Type – Integrated LED
• Wattage - 12.2W (including the driver)
• Lumens (CRI - >80) - 1020lm (3000K) - 1060lm (4000K) - 1040lm (6500K)
• Colour Temperature - 3000K - 4000K - 6500K
• CRI - >80 / >90
• Beam Angle - 90°
• Dimmable - Yes

Product info:
• Choose between Warm White (3K), Cool White (4K) & Daylight (6.5K) to suit application use
• Change the colour temperature using the switch on the driver

Physical size:
• Dimensions - 99mm x 99mm x 39mmH

Product Reference:
• Catalogue 2021 - Page 12
• Catalogue 2022 - Page 95-96

Note:
•This model replaces the previous ICDLS12W3K-SL
• Brushed chrome models not suitable for exterior use and bathroom

Does not offer protection for highly corrosive environments, example: Zone D as outlined in the building code.

Refer DDT280 for replaceable driver to extend longevity of the downlight
