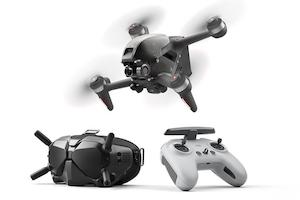

DJI FPV Combo

The DJI Fly app can display the live view from the goggles on a smartphone when connected via cable. 11

With the DJI Fly app, you can playback footage, edit, and share your work on social media, all with just a few taps.

You can also discover popular aerial photography spots near you with the Fly Spots feature.

IT’S READY TO FLY AND SO ARE YOU

Forget complicated wiring and assembly. The offers everything you need, assembled and ready to go in one box. Simply turn on and activate the aircraft, remote controller, and goggles and go fly.

360° VIEW OF DJI FPV

360

Get a feel for what it is like to own DJI FPV in advance.

Click and drag the image to view.

AR

Take a closer look from every angle.

Use your iOS camera to scan the QR code for an AR preview of DJI FPV.

Product Specifications PRODUCT SPECIFICATIONS CAMERA Sensor 1/2.3" CMOS Effective pixels: 12 million Lens FOV: 150° 35mm Format Equivalent: 14.66 mm Aperture: f/2.8 Focus Mode: Fixed Focus Focus Range: 0.6 m to ∞ ISO 100-12800 Shutter Speed 1/50-1/8000 s Still Photography Modes Single shot Max Image Size 3840×2160 Photo Format JPEG Video Resolution 4K: 3840×2160 at 50/60fps FHD: 1920×1080 at 50/60/100/120fps Video Formats MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC） Max Video Bitrate 120 Mbps Color Profile Standard, D-Cinelike RockSteady EIS Available Distortion Correction Available Supported File Formats exFAT (recommended) FAT32 GIMBAL Mechanical Range Tilt: -65° to 70° Controllable Range Tilt: -50° to 58° Stabilization Single-axis (tilt), electronic roll axis Max Control Speed 60°/s Angular Vibration Range ±0.01° (N mode) Electronic Roll Axis Available (can stabilize footage when the aircraft is tilted at angles of up to 10°) AIRCRAFT Takeoff Weight Approx. 795 g Dimensions 255×312×127 mm (with propellers) 178×232×127 mm (without propellers) Diagonal Distance 245 mm Max Ascent Speed M mode: No limit S mode: 15 m/s N mode: 8 m/s Max Descent Speed M mode: No limit S mode: 10 m/s N mode: 5 m/s Max Speed 140 kph; M mode: 39 m/s (27 m/s in Mainland China) S mode: 27 m/s N mode: 15 m/s Max Acceleration 0-100 kph: 2 s (in ideal conditions while flying in M mode) Max Service Ceiling Above Sea Level 6,000 m Max Flight Time Approx. 20 mins (measured while flying at 40 kph in windless conditions) Max Hover Time Approx. 16 mins (measured when flying in windless conditions) Max Flight Distance 16.8 km (measured while flying in windless conditions) Max Wind Speed Resistance 39-49 kph (25-31 mph) Operating Temperature -10° to 40° C (14° to 104° F) Transmitter Power (EIRP) 2.400-2.4835 GHz FCC: ≤ 31.5dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 Ghz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 25.5 dBm Number of Antennas Four GNSS GPS GLONASS GALILEO Hovering Accuracy Range Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS positioning) Supported SD Cards microSD (up to 256 GB) Internal Storage N/A SENSING SYSTEM Forward Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only FOV: 56° (horizontal), 71° (vertical) Downward (dual vision sensors ToF) ToF Effective Sensing Height: 10 m Hovering Range: 0.5-15 m Vision Sensor Hovering Range: 0.5-30 m Downward Auxillary Light Single LED Operating Environment Refers to non-reflective, discernible surfaces Diffuse reflectivity >20% (e.g. walls, trees, people) Adequate lighting conditions (lux >15 in normal indoor lighting conditions) CHARGER Input 100-240 V, 50/60 Hz, 1.8 A Output Battery charging interface: 25.2 V ± 0.1 V 3.57 A ± 0.1 A (high current) 1 A ± 0.2 A (low current) USB Port: 5V/2A (×2) Rated Power 86 W INTELLIGENT FLIGHT BATTERY Battery Capacity 2000 mAh Voltage 22.2 V Max Charging Voltage 25.2 V Battery Type LiPo 6S Energy 44.4 Wh@0.5C Discharge Rate Standard: 10C Weight 295 g Charging Temperature 5° to 40° C (41° to 104° F) Max Charging Power 90 W VIDEO TRANSMISSION Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz Communication Bandwidth 40 MHz (Max.) Live View Mode Low-Latency Mode: 810p/120fps ≤ 28ms High-Quality Mode: 810p/60fps ≤ 40ms Max Video Bitrate 50 Mbps Transmission Range 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) Audio Transmission Support Yes DJI FPV GOGGLES V2 Weight Approx. 420 g (headband and antennas included) Dimensions 184×122×110 mm (antennas excluded) 202×126×110 mm (antennas included) Screen Size 2-inches (×2) Screen Refresh Rate 144 Hz Communication Frequency 1 2.400-2.4835 GHz 5.725-5.850 GHz Transmitter Power (EIRP) 2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm Communication Bandwidth 40 MHz (Max.
