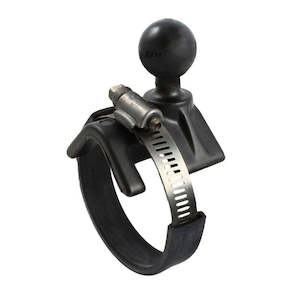

RAM Strap Hose Clamp Base, Large for Beechcraft Bonanza With 1" Ball
OVERVIEW
The RAM-B-108B-STRAP40U accommodates rails from 2" to a maximum of 3" in diameter. To mount the RAM-B-108B-STRAP40U base, place the saddle-shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw-over yoke".
HARDWARE INCLUDED
(1) #40 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
2" - 3" diameter
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
