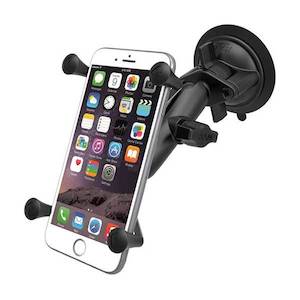

RAM X-Grip for Large Smartphones with Mounting Options
Kit includes
- 1x cradle
- 1x arm (3" length) and 1x choice of mount (optional)
Choose from one of 5 mounting options:
- Cradle without mount.
- Cradle with RAM Screw-on mount
- Cradle with RAM Suction Cup
- Cradle with RAM Tough-Claw yoke mount
- Cradle with RAM Yoke Clamp
- Cradle with RAM Handlebar U-Bolt
Compatible with the following devices:
iPhones: 6S Plus, 7 Plus, 8 Plus, Xs Max, 11 Pro Max, 12 Pro Max, 13 Pro Max, 14 Plus, 14 Pro Max, 15, 15 Plus, 15 Pro Max, iPhone 16
Samsung Galaxy: A7, A8 , A9, A9 Pro, A70, A80, A90 5G, C7. C7 Pro, C9 Pro, E7, Grand Neo Plus
Samsung Galaxy: J7, J7 Max, J7 V2, Note 5 , Note 10 Plus, Note20 Ultra, On7, S10 5G,
Samsung Galaxy: S8, S8 Active, S21 5G, S21 5G, S21 Ultra 5G, S22 Ultra 5G
Garmin: Drive 50, Drive 51 LM, Drive 52, Drive 61 LM
Google: Pixel 2 XL, Pixel 3 XL, Pixel 3a XL
Huawei: Mate 20X
LG: Fiesta2 LTE, Fiesta LTE, G8S ThinQ, Harmony, Stylo 2/3/3 Plus Titan/4, V20, V50 ThinQ, X charge, X Venture
Also fits many others devices with the following dimensions:
Minimum Width - 4.44cm (1.75")
Maximum Width - 11.43cm (4.5")
Maximum Depth - 2.22cm (0.875")
Contact our team if you would like assistance checking the compatibility of your device.
Features
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Mounting Options
Screw-Down
- The RAM-B-202U consists of a 1" B size rubber ball connected to a 2.5" diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.
- HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
- PLATE SIZE: 2.5" Diameter Suction Cup
- The RAM-B-224-1U suction cup base consists of a 3.3" diameter RAM Twist-Lock suction cup connected to a RAM-B-238U diamond base with a 1" B size rubber ball. The RAM Twist-Lock suction cup base is a fan favourite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface
- SUCTION SIZE: 3.3" Diameter Tough Claw
- The RAM Tough-Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM Tough-Claw can quickly be clamped on rails ranging from.625" to 1.14" in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more in a wide variety of applications.
- CLAMP RANGE:.625" - 1.14" diameter Yoke Clamp
- The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.
- CLAMP RANGE:.625" - 1.25" Handlebar U-Bolt
- Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of.5".
- HARDWARE INCLUDED
- (1) 1/4"-20 U-Bolt for.5" - 1" Rails
- (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
- (2) 1/4"-20 Nylock Nuts
- (2) Rubber Caps
- (1) U-Bolt Spacer
- CLAMP RANGE:.5" - 1.25" diameter
