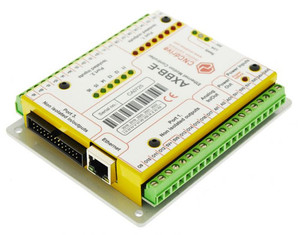

AXBB-E ethernet motion controller and breakout board roguecnc

- Complete motion controller and breakout board solution in a single board.

- 8 optically isolated high speed N-channel power mosfet transistor outputs.(NPN)

- 9 non-isolated buffered TTL outputs to control step/dir signals, laser driver.

- Isolated charge pump output with power N-channel mosfet transistor.

- 6 high speed optoisolator inputs.

- 1 IDC26 non-isolated extension port with standard LPT port pinout (12 outputs and 5 inputs).

- LED indicators on isolated I/Os.

- Isolated I/Os are 24Volts capable.

Downloads:

Manual:

https://www.cncdrive.com/downloads/AXBB E manual.pdf

UCx00 automatic installer application for Mach3:

http://cncdrive.com/MC/UC100 full auto installer/UCx00setup.exe
