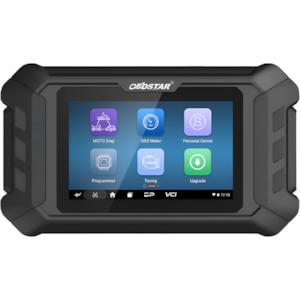

OBDSTAR MS50 Motor Cycle Diagnostic Tool ( Standard Configuration )
MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Functions
- Android 5.1.1 operation system
- Simple and intuitive menu guidance allows you to quickly master the equipment operation
- Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding
- Menu arbitrary selection is more convenient and quicker
- Record and play back real-time data flow, quickly and accurately locate sensor and component faults
- Wi-Fi connection to the internet, one-click software upgrade
- One-click remote function, OBDSTAR technical staff remote assistance
- Support most of the Asia and Europe models.
Advanced function
- The first fault guidance, help data, technical bulletin, diag socket help you diagnose accurately and efficiently
- Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults
- Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory.
Supports Moto Diag, Odometer Recalibration, Tuning.
Motorcycle/snowmobile/ATV/UTV diagnostic support series
ASIA:
AEON, BAJAJ, BENELLI(DSK), HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA
EUROPE:
APRILIA, BENELLI, HM, HUSQVARNA, KTM, PIAGGIO, ROYAL ALLOY, VESPA
CHINA:
CHINA ABS, CHINA ENGINE, CFMOTO, HAOJUE, LINHAI, QJBENELLI, SHINERAY, WYHONDA, XDZHONDA, ZONTES
AMERICAS:
ACELLERA, VICTORY colombia
Cluster Recalibration support series
KTM
Programmer(Cluster Recalibration by Dump) support Series
EUROPE:
APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH
AMERICAS:
BUELL, HARLEY-DAVIDSON
ASIA:
HONDA, KAWASAKI, SUZUKI, YAMAHA
CHINA:
HAOJUE, KYMCO
Tuning s upport series
HONDA
Specifications:
Operation system
Android 5.1.1
CPU
RK3128 quad-core ARM cortex A7
Battery
2600mA, rechargeable polymer lithium battery
Extension memory card
32G micro SD (TF) card supported LCD 5.0 inch
LCD resolution
800 480
Touch screen
Capacitive touch screen
Wifi
Supported Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature
-20℃~70℃ (-4℉~158℉)
Weight
About 700g
Dimension
198mm 115mm 31mm
