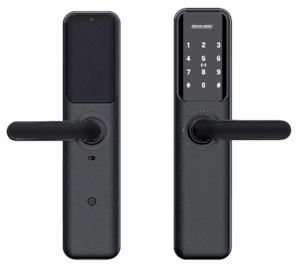

Schlage Resolute Smart Lock

The Schlage Resolute smart lock provides keyless
convenience for a modern look to any entrance.
The Schlage Resolute provides a simple keyless
solution with access via keypad, Bluetooth, or key
tags. It seamlessly integrates with the Schlage
Breeze app, to easily manage and monitor the lock
via a mobile phone.
The wide style escutcheon of the Schlage Resolute
and options available for mortice lock provide
options for retrofitting from existing mechanical door
hardware.

• Simple access including keypad, key tags, app or
back-up key
• Easy to set up and program using the Schlage
Breeze app, program access codes for temporary
or recurring visitors
• Send virtual keys to guests, via text message from
the Schlage Breeze app
• Use voice commands via Amazon Alexa or Google
Assistant
• Firmware updates through the app ensure future
compatibility
• Convenience of passage or auto locking modes for
easy access
• Built-in alarm technology senses potential security
breaches at the lock
• Audit trail allows you to see who has used the lock
and when
• Random PIN number function protects your entry
code
• Low battery notification offers weeks of advanced
warning for battery replacement
• Get real-time connectivity with the Schlage Wi-Fi
Bridge (BZ100) optional accessory

Technical specifications
Finishes
Black
Silver
Hardware Specification
Materials 304SS body and lever
Finishes Silver or Black
Keypad 12 keys with individual LED illumination
Feedback Voice guidance, audible tones and LED indicators
Lock type Mortice lock included
Temperature range -30°C to 55°C
Humidity 0 to 95%, non condensing
Suitable environment Recommended for aluminium or timber
Batteries 4x 1.5V AA alkaline batteries
Battery life Approximately 6-12 months (10 uses per day)
Door thickness 35-70mm
External body dimensions 303mm x 73mm x 27mm (L x W x D)
Internal body dimensions 303mm x 73mm x 27mm (L x W x D)
Access Specification
Access methods Keypad, key tag, Bluetooth app, or Wi-Fi via bridge
Bluetooth app Schlage Breeze
Key override Override cylinder with 2 keys
Number of users 500
Key tags Up to 200 (3x tags included)
PIN code Up to 150
PIN code length 4-9 digits
Verification time
