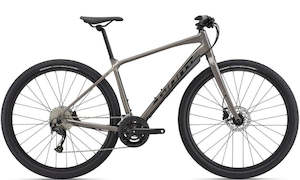

Giant 2022 ToughRoad SLR 2

When the pavement ends, the adventures begin. Climb a rugged mountain pass, roll through gravel, or venture onto forest trails. ToughRoad SLR lets you do it all.

Lightweight Agility

The frameset is constructed with ALUXX SLR, Giant’s lightest grade of aluminum, and a composite fork.

Comfort and Stability

Flat-bar frame geometry puts rider in a position that balances efficiency with confidence on rough roads, paths or trails.

Integrated Rack Mounts

Compatible with front and rear racks, allowing easy cargo capacity for daily trips or longer treks.

Specifications Giant 2022 Toughroad SLR 2

Frame

Colour: Metal
Frame: ALUXX SLR-Grade aluminium, disc
Fork: Advanced-Grade Composite, alloy OverDrive steerer, disc
Shock: N/A
Weight: N/A

Drivetrain

Crankset: ProWheel forged alloy, 28/44 with chainguard S:170mm, M:170mm, L:175mm, XL:175mm
Pedals: N/A
Chain: KMC X9 with Missing Link
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Alivio
Front Derailleur: Shimano Acera
Derailleur Shifter: Shimano Altus, 2x9
Freewheel/Cassette: Shimano CS-HG201, 11x36

Wheels

Tires: Giant Sycamore S, 700x50c, FlatGuard Deflect 2
Wheels/Rims: Giant double wall aluminum
Hubs: Alloy, 32h

Braking System

Brakes: Shimano BL-MT200 hydraulic, F 160mm, R 160mm rotors
Brake Levers: Shimano BL-MT200

Other

Handle Bar: Giant Connect XC, 31.8mm
Stem Headset: Giant Contact, 8-degree S:60mm, M:70mm, L:80mm, XL:90mm
Grips: Giant Connect Ergo
Saddle: Giant Sport
Seat Post: Giant D-Fuse

Extras

X-DeFender protection, 53mm max tyre size Sizing Guide

- S 160 cm 170 cm
- M 170 cm 180 cm
- L 180 cm 190 cm
- XL 190 cm 200 cm

S M L XL A SEAT TUBE LENGTH (mm) 420 460 510 550 B SEAT TUBE ANGLE 73.0° 73.0° 72.0° 71.5° C TOP TUBE LENGTH (mm) 585 595 605 620 D HEAD TUBE LENGTH (mm) 125 150 170 190 E HEAD TUBE ANGLE 71.5° 71.5° 72.0° 72.0° F FORK RAKE (mm) 42 42 42 42 G TRAIL (mm) 78.3 78.3 74.9 74.9 H WHEELBASE (mm) 1067 1078 1071 1080 I CHAIN STAY LENGTH (mm) 450 450 450 450 J BOTTOM BRACKET DROP (mm) 70 70 70 70 K STACK (mm) 578 602 623 642 L REACH (mm) 408 411 403 405 M STAND OVER HEIGHT (mm) 724 754 795 864 O STEM LENGTH (mm) 90 100 110 110 P CRANK LENGTH (mm) 170 175 175 175 Q WHEEL SIZE 700C 700C 700C 700C
