NCE PH pro R 5Amp system - Requires Power Supply

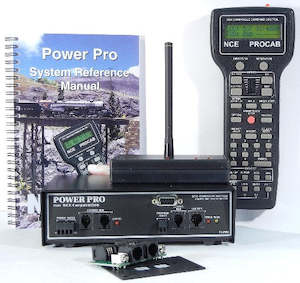

NCE Power Pro 5 amp DCC System

The Power Pro is the most user friendly DCC system on the market. The Pro-Cab walks you through every operation with clearly labeled buttons and well thought out menu prompts in plain English on its back lit LCD display. The most often performed operations usually are just a single key press. Plug in EPROMs allow you to update the system and no need to return the unit to the factory.

The Power Pro starter set has everything you need to get DCC equipped trains up and running (except power transformer). The Quick Start Guide included in our system reference manual will have you up and running in less than 20 minutes.

Power Pro 5A Specifications:
Cabs: 60 maximum
Number of simultaneous trains: 250
Number of consists: 127
Range of locomotive addresses: 0-9999
Range of consist addresses: 1-127
Range of accessory addresses: 1-2044
RS232 computer interface included
Continuous Output Current: 5 Amps
Short circuit handling: Auto shutdown 500mS
Output voltage: Factory set to 14 Volts adj 10-24V

Power supply: 15VAC, 5Amps @ 60VA not included with Pro

Power Supply:

A MRRC TCX-02 power supply 15vAC - 5 amp is the prefered transformer for your system. If you are using a different transformer ensure that it complies with the NCE specifications for a power supply. Refer "Basic Set Up of 5 amp Power Pro System" at the start of the manual
