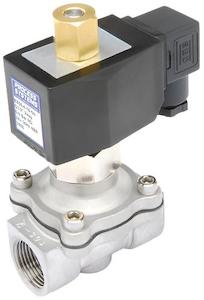

ES56 Stainless steel solenoid valve normally open 1 inch BSP port size 0 - 7 bar 12 CV
ES56 stainless steel solenoid valve normally open
Model: ES56-6-25- N
1 inch BSP port size
25 mm orifice
12 CV
0 - 7 bar pressure air
0 - 5 bar pressure liquid
Media temperature: -10°C to 80°C
304 stainless steel body
NBR seat
Available in 12v DC, 24v DC, 240v AC
A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator
Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals
Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug
Typical Applications include tank drain and low pressure general industry applications
