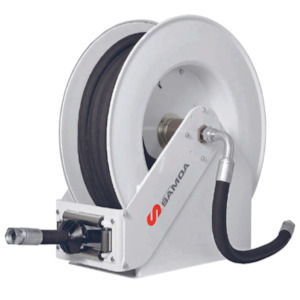

Samoa 508225 RM-100 retractable hose reel with 15 m x 25 mm (1 inch) hose for diesel, oil, air, coolant and water 90 bar (1300 psi)

Samoa 508225 RM-100 retractable hose reel with 15 m x 25 mm (1 inch) hose
For diesel, oil, air, coolant and water
Working pressure: 90 bar (1300 psi)
Bare reel part number: 508925
Hose length: 15 m (49.21 ft)
Fluid outlet: 1 inch BSP(M)
Hose inside diameter: 25 mm (1 inch)
Fluid inlet: 1 inch BSP(M)
Installation position options: tank mount, floor mount
Data:
- robust construction to withstand regular use and abuse in intensive duty applications
- fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose
- full port shaft and swivel for no restrictions
- spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life
- large effective radial latching area for easier operation
- hose guide arm can be placed in different positions to accommodate any method of mounting
- narrow footprint allows accommodating more reels on the same surface
- reels with longer hose capacity include a dual spring for effective hose retraction
