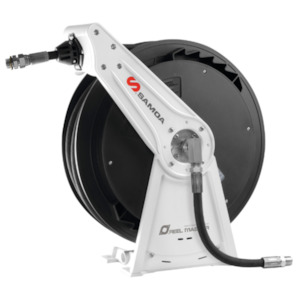

Samoa 506222 RM-12S retractable hose reel for oil with 15 m x 12 mm (1/2 inch) hose 160 bar (2300 psi)

Samoa 506222 RM-12S retractable hose reel for oil with 15 m x 12 mm (1/2 inch) hose
160 bar (2300 psi)
1/2 inch BSP(M) inlet port
1/2 inch BSP(M) hose end outlet port
Mounting positions:
- floor or bench mount
- wall or vertical mounting
- ceiling or under bench mounting
- tank mounting
Features:
- aluminium base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation
- fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose
- pull port shaft and swivel for no restrictions
- spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life
- large effective radial latching area for easier operation
- six roller guide outlet prevents hose pinching and reduces friction
- hose guide arm can be placed in different positions to accommodate any method of mounting
- hose reels with hose include 0.8 m inlet hose
