Hydrotechnik HTE2-L-0060KIT digital data logging pressure gauge with readout via Mini-USB to PC/laptop via USB cable 0 to 60 bar (0 to 870 psi)

Hydrotechnik HTE2-L-0060 digital data logging pressure gauge kit

Readout via Mini-USB to PC/laptop via USB cable: no converters needed

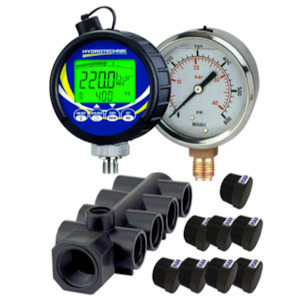

Kit includes:

1 x Hydrotechnik HTE2-L-0060 digital pressure gauge with data logging 876.HTE2-L-0060

1 x Wika pressure gauge 63 mm face 1/4 inch BSP(M) bottom entry 6000 kpa (870 psi) 40.WG7150

1 x Banjo TM075/050 manifold with 8 x ports, 3/4 inch NPT(F) inlet X 1/2 inch NPT(F) outlet, 1/4 inch NPT(F) gauge port 28.TM075/050

8 x Hansen plug 15 mm 1/2 inch BSP(M) 111.HSP15

1 x Hansen plug 6 mm 1/4 inch BSP(M) 111.HSP06

Features:

0 to 60 bar (0 to 870 psi) measuring range

10 recordings up to 27000 records each

Automatic scan rate 100ms up to 6.4s (depending on test duration) 48 hours max duration

Selectable bar, mbar, kPA, MPa, PSI, kg/cm², mH2O, inH2O units

G1/4 inch BSP male thread with captive seal

2 x 1.5V AA battery supply

Backlight

Resolution 0.01 bar, accuracy 0.5% FS

Rubber protection shroud

Optional calibration certificates extra on request

10 recording series possible

27,000 data sets per recording series

1 data record containing: time / date / actual pressure / min./max. value

Summary of all min./max. values per record series

Intelligent automatic measuring interval: the time between data sets (storage rate) is selected automatically, depending on the recording duration

Data evaluation via Plug and Play: no additional drivers or software required

Readout via Mini-USB to PC/laptop via USB cable: no converters needed

Storage of the measured values in CSV format: processing in spreadsheets and database programs
