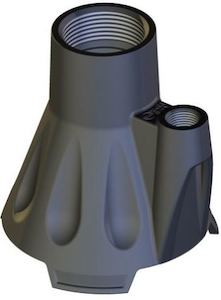

PA Mud Sucker tool bare 1-1/4 inch BSP(F) outlet 250 bar (3650 psi) 25 lpm max input flow

PA Mud Sucker tool bare
Requires 1/4 inch NPT(M) zero degree WashJet nozzle
3/8 inch BSP(F) inlet
1-1/4 inch BSP(F) outlet
250 bar (3650 psi) rated
25 lpm max input flow
90 degrees C max rated temperature
Note:
Only use zero degree WashJet nozzle (not included)
How does the PA Mud Sucker work?
Pressure from a water blaster (pressure washer) is fed into the 3/8 inch BSP(F) inlet port
This water pressure is channeled around to spray vertically
It is forced through a zero degree stainless steel WashJet nozzle
This water flow in turn creates a venturi effect, drawing up any mud, solids and stones through the 1-1/4 inch BSP(F) outlet port
In effect a relatively small volume of clean water pumped at high pressure is used to move large volumes of mud, sludge and solids
A clever, low-cost tool for home-owners, industry, contractors and hire-centres
