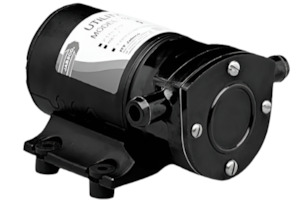

Jabsco 12560-0001 12v plastic poly pump 16 mm (5/8 inch) hose tails 19 lpm 0.6 bar (8.7 psi)

Jabsco 12560-0001 12v plastic poly pump 16 mm (5/8 inch) hose tails) 19 lpm 0.6 bar (8.7 psi)
Easy to service and maintain
Handles hard and soft solids without clogging
Non-pulsating flow
- 16 mm (5/8 inch) hose tails
- amp draw: 1.2 amp
- fuse size: 10 amp
Performance:
- 19 lpm (5 US gpm) max flow
- 6 metres (0.6 bar) 20 ft (8.7 psi) max vertical head
- self-priming from dry to 2.4 m (7.8 ft)
Materials:
- Phenolic plastic pump body
- Neoprene impeller
- seal: lip type
- shaft material: stainless steel
Points:
- must be mounted in a dry location
- motor is not waterproof and must not be submerged
- selection of a cool, ventilated location will generally extend pump motor life
- can be mounted in any desired position
- mount so that water dripping from loose port connection will not wet the motor
- pump head may be mounted at 180 degree increments on the motor to allow change in flow direction
- must not be run dry, as the pumped liquid is the lubricant for the impeller
- observe the outlet and shut off pump as soon as liquid stops flowing
- explosion hazard
Applications:
- water
- some chemicals
- bilge pumping
- live well circulation
- washdown
- general pumping requirements
- do not pump gasoline, solvents, thinners or other flammable liquids
