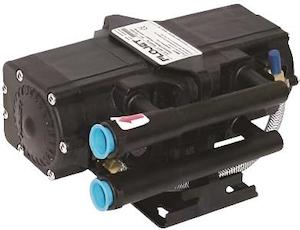

FloJet G257501A 1/2 inch NPT(F) dual head air operated Santoprene diaphragm pump 38 lpm 6.9 bar (100 psi)
FloJet G257501A G57 dual head air operated diaphragm pump
38 lpm max open flow
20 to 100 (psi) 1.4 to 6.9 (bar)
120 (°F) 48.9 (°C) max fluid temperature
Self-priming to 15 ft (4.5 m)
Ports: air inlet and outlet 1/4 inch (6.3 mm) hose tail, fluid inlet 1/2 inch (12.7 mm), fluid outlet 1/2 inch (12.7 mm)
Inlet and outlet: 1/2 inch NPT(F) 12.7 mm
Diaphragm: Santoprene
More:
Flows up to 10 GPM (38 lpm)
Chemical resistant Polyproplene housings with Viton® and Santoprene® elastomers
Easy installation with 1/2 inch (12.7 mm) Dual manifold
Duplex diaphragm design
Patented shuttle valves, eliminates stalling
Compact size
Flojet ultra-efficient, "stand-up-to-anything" G57 pump has become an industry leader
And now Flojet has raised the bar on pump performance even higher with the G57 Two-Pump system
The Two-Pump system delivers flows of up to 38 lpm (10 gpm)
The G57 two pump system is ideal for a host of heavy-duty industrial applications
These air-operated pumps are fitted with Santoprene or Viton elastomers to handle even the harshest cleaners and solvents
A patented ceramic shuttle valve ensures a lifetime of stall-free operation
FloJet commitment to sophisticated engineering and advanced design means you can depend on these pumps to consistently, reliably deliver the highest in performance with minimal servicing
0
0
38 lpm max open flow
20 to 100 (psi) 1.4 to 6.9 (bar)
120 (°F) 48.9 (°C) max fluid temperature
Self-priming to 15 ft (4.5 m)
Ports: air inlet and outlet 1/4 inch (6.3 mm) hose tail, fluid inlet 1/2 inch (12.7 mm), fluid outlet 1/2 inch (12.7 mm)
Inlet and outlet: 1/2 inch NPT(F) 12.7 mm
Diaphragm: Santoprene
More:
Flows up to 10 GPM (38 lpm)
Chemical resistant Polyproplene housings with Viton® and Santoprene® elastomers
Easy installation with 1/2 inch (12.7 mm) Dual manifold
Duplex diaphragm design
Patented shuttle valves, eliminates stalling
Compact size
Flojet ultra-efficient, "stand-up-to-anything" G57 pump has become an industry leader
And now Flojet has raised the bar on pump performance even higher with the G57 Two-Pump system
The Two-Pump system delivers flows of up to 38 lpm (10 gpm)
The G57 two pump system is ideal for a host of heavy-duty industrial applications
These air-operated pumps are fitted with Santoprene or Viton elastomers to handle even the harshest cleaners and solvents
A patented ceramic shuttle valve ensures a lifetime of stall-free operation
FloJet commitment to sophisticated engineering and advanced design means you can depend on these pumps to consistently, reliably deliver the highest in performance with minimal servicing
×
