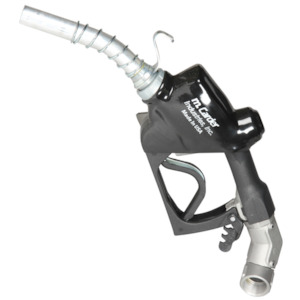

Carder MF-1000 automatic fuel nozzle for diesel and petrol 1 inch BSPP(F) with multi-plane inlet swivel 90 lpm max

Carder MF-1000 automatic fuel nozzle for diesel and petrol 1 inch BSPP(F) with multi-plane inlet swivel
1 inch BSPP(F) inlet port
90 lpm max
Colour coded boot: black for diesel and green for petrol
Includes hold-open latches
Micro touch valve for precise flow control
Pure Teflon stem packing eliminates leaks
Roto-Matic latch pin for smoother auto shut off
Smart guard snap on scuff guard
Automatic nozzle materials:
High strength aluminium body
Zinc body cap
Nylon hand guard
Viton seals
Viton poppet
Teflon packing
GT multi-plane swivel:
GT type 1 inch BSP multi-plane swivel joint code 12.3079
45 degree dual plane type swivel
1 inch BSPP(M) x 1 inch BSPP(F)
Full 360° rotation for full and free hose movement
Refuel vehicles from virtually any direction
Swivel between the fuel nozzle and hose to reduce strain
Aluminium die cast construction
Double Viton oring seals for long service life
Laminar flow design for higher fuel flow
Swivel wetted components:
Aluminium, brass and Viton
Bare nozzle dimensions:
318 mm x 254 mm (L x H)
Applications:
Diesel
Petrol (gasoline)
Small 12v and 230v fuel pumps
Large farm and consumer fuel pumps
