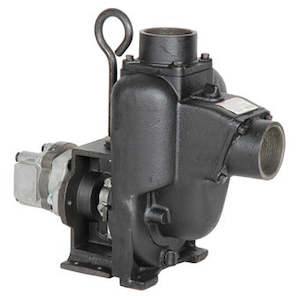

Banjo 300PIHY 3 inch NPT(F) hydraulic driven cast iron pump 1323 lpm 43.4 m head

Banjo 3 inch NPT(F) hydraulic driven cast iron pump

Model 300PIHY

Dynamically balanced cast iron impeller

Replaceable inlet and outlet flanges

Carbon ceramic mechanical seal with stainless steel cup and spring with FKM (viton type) rubber

Optional 28.18025SD heavy duty silicone carbide semi-trash mechanical seal

Pump performance:

1323 lpm (350 gpm)

43.4 m head

4.34 bar (63 psi)

21 hp Tyrone UM16 hydraulic motor

Hydraulic requirements:

Open hydraulic system

Minimum 41 bar (600 psi) hydraulic pressure

Maximum 21 bar (300 psi) hydraulic pressure

Minimum 34 lpm (9 gpm)

Maximum 49 lpm (13 gpm)

Dimensions:

512 x 270 x 442 mm (L x W x H)

Applications include:

Pumping Bentonite

Hydro seeding

Spray-on liquid grass

Liquid fertiliser

Effluent

For your interest:

This pump is commonly used for pumping Bentonite

Bentonite is a material composed of clay minerals, predominantly montmorillonite with minor amounts of other smectite group minerals, commonly used in drilling mud

Bentonite swells considerably when exposed to water, making it ideal for protecting formations from invasion by drilling fluids

Montmorillonite forms when basic rocks such as volcanic ash in marine basins are altered
