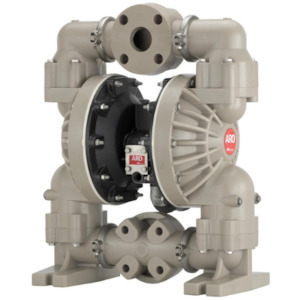

Aro 6661T3-344-C 40 mm (1-1/2 inch) ANSI flange poly air operated diaphragm pump 378 lpm 8.3 bar (120 psi)

Aro 6661T3-344-C 40 mm (1-1/2 inch) ANSI flange poly air operated diaphragm pump
378 lpm
8.3 bar (120 psi)
Self priming (dry) to 4.3 m
Ratio: 1:1
Displacement per cycle: 2.54 litres
Air inlet (female): 1/2 inch NPT(F)
Fluid inlet/outlet: 1-1/2 inch ANSI / DIN flange
(Note: 1-1/2 inch NPT(F) threaded flanges available on request)
Suspended solids to 6 mm max
Sound level: 77.7 db(A)
Materials:
Fluid caps and manifold material: Polypropylene (3 piece manifold)
Diaphragm material: PTFE (Teflon) with Santoprene backing
Ball material: PTFE (Teflon)
Ball seat material: Polypropylene
Why use Aro air diaphragm pumps?
Sealless design
Low material shear factor
Ease of maintenance
Can run dry forever without damage
Portable
Self priming
Easy-to-install
Quiet
Relatively low purchase cost
About Aro Pumps
Aro is a world-leading brand of Ingersoll Rand.
Aro is Fluid Intelligence and a leading worldwide manufacturer of fluid handling products that are expertly engineered to deliver performance and serviceability, enabling our customers to achieve the best total cost of ownership.
Aro is fluid intelligence—the smart choice in fluid management products for industrial operations.
Our air-operated diaphragm pumps, piston pumps, filters, regulators, lubricators, lubrication equipment, and pneumatic valves/cylinders are expertly engineered to deliver performance and serviceability.
That’s why Aro is fluid intelligence, the smart choice in fluid management products for industrial operations.
With an 85-year legacy of premier product performance and service excellence, Aro provides fluid management equipment for customers and industries around the globe, including chemical, manufacturing, energy, pharmaceutical, mining, and more.
Today Aro Pumps is located here:
Aro Americas
209 N. Main Street
Bryan, Ohio 43506
United States of America
