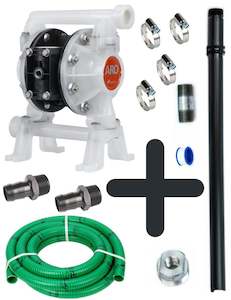

Aro 3/4 inch NPT(F) poly air operated diaphragm drum pump kit (Santoprene) 56 lpm 6.9 bar (100 psi)

Aro Ingersoll Rand PD07P-APS-PAA 3/4 inch NPT(F) poly air operated diaphragm drum pump kit

56 lpm 6.9 bar (100 psi)

Self priming (dry) to 4.5 m

Drum suction kit includes:

- telescopic poly drum suction tube 584 mm to 1029 mm length range (23 - 40.5 inches)

- thread tape

- 10 m x 19 mm (3/4 inch) SD hose

- 50 mm (2 inch) drum nut for steel 205 litre drums

- hose fittings and hose clamps

Pump data:

Ratio: 1:1

Displacement per cycle: 0.12 litres

Air inlet (female): 1/4 - 18 PTF SAE short

Fluid inlet/outlet: 3/4 inch NPT(F)

Suspended solids to 2.4 mm max

Sound level: 75 db(A)

Muffler: integral (included)

Materials:

Fluid caps and manifold material: Polypropylene (Single port)

Diaphragm material: Santoprene

Ball material: Santoprene

Ball seat material: Polypropylene

Why use Aro air diaphragm pumps?

Sealless design

Low material shear factor

Ease of maintenance

Can run dry forever without damage

Portable

Self priming

Easy-to-install

Quiet

Relatively low purchase cost
