Aro 1/2 inch NPT(F) poly air operated diaphragm drum pump kit (Santoprene) 49 lpm 6.9 bar (100 psi)

Aro 66605J-3EB 1/2 inch NPT(F) poly air operated diaphragm drum pump kit
49 lpm 6.9 bar (100 psi)

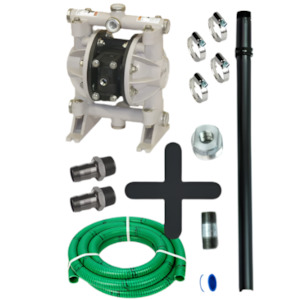

Drum suction kit includes:
. telescopic poly drum suction tube 584 mm to 1029 mm length range (23 - 40.5 inches)
. thread tape
. 10 m x 19 mm (3/4 inch) SD hose
. 50 mm (2 inch) drum nut for steel 205 litre drums
. hose fittings and hose clamps
Pump data:
Self priming (dry) to 4.5 m
Ratio: 1:1
Displacement per cycle: 0.15 litres
Air inlet (female): 1/4 - 18 PTF SAE short
Fluid inlet/outlet: 1/2 inch NPT(F)
Suspended solids to 2.4 mm max
Sound level: 71.1 db(A)
Materials:
Muffler: integral (included)
Fluid caps and manifold material: Polypropylene (Single piece manifold)
Diaphragm material: Santoprene
Ball material: Santoprene
Ball seat material: Polypropylene
Fluid repair kit:
Code 637140-22
Why use Aro air diaphragm pumps?
Sealless design
Low material shear factor
Ease of maintenance
Can run dry forever without damage
Portable
Self priming
Easy-to-install
Quiet
Relatively low purchase cost
