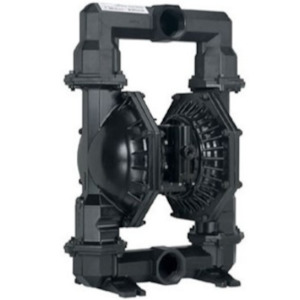

Aro PD30A-AAP-FTT-C 3 inch NPT(F) aluminium air operated diaphragm pump 1041 lpm 8.3 bar (120 psi)
Aro Ingersoll Rand PD30A-AAP-FTT-C 3 inch NPT(F) aluminium air operated diaphragm pump
1041 lpm (275 gpm)
8.3 bar (120 psi) 83 m head
Maximum dry suction lift to 4.2 m
Solids handling to 10 mm (3/8 inch)
Materials:
Body: aluminium
Air motor and air cap: aluminium
Seats: aluminium
Balls: PTFE
Diaphragms: PTFE with Santoprene backers on air side
Features:
The ultimate in heavy duty pump design
Up to 4 times the life of traditional diaphragm pumps due to the EXP new convoluted diaphragm design
Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
Reliability - ARO patented 'Unbalanced' air valve ensures no-stall operation
Versatility - broad range in materials of construction for optimum fluid compatibility
Environmentally Sound - bolted construction for leak-free fluid handling
Serviceability - easier service through modular design
